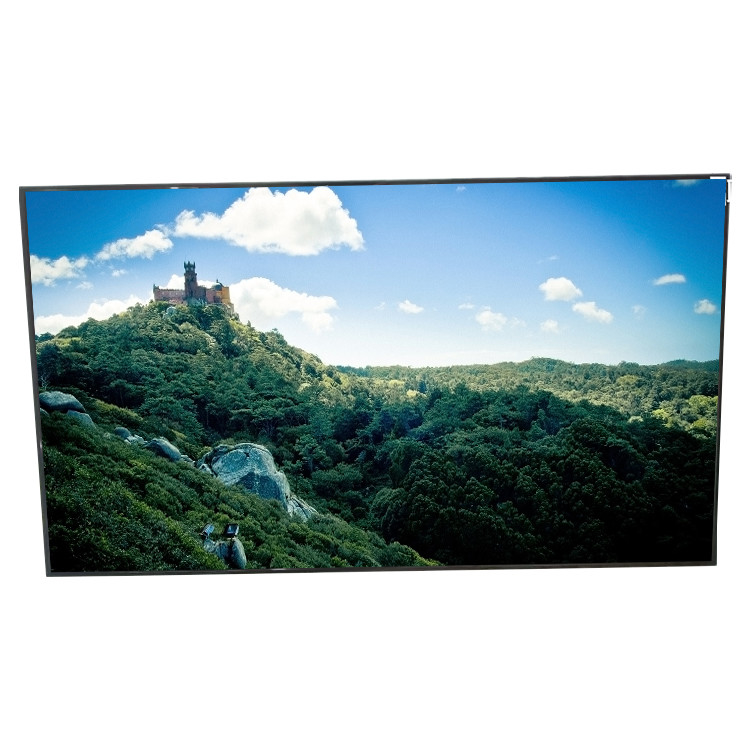

42.0 inch LCD Screen Display Panel LD420EUN-UHA1 for Digital Signage Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD420EUN-UHA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LD420EUN-UHA1 | Diagonal Size: | 42" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 52PPI | Active Area: | 927.94(W)×521.96(H) Mm |
| Bezel Opening: | 933.94(W)×527.96(H) Mm | Outline Dim.: | 945.74(H)×539.76(V)×34.7(D) Mm |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 1300:1 (Typ.) (TM) |
| Spliced Seam: | 17.8 Mm (active To Active Seam) | Designed For: | Digital Signage / Video Wall |
| High Light: | lcd video wall panels,lcd video monitors,LCD Display Screen |
||
Product Description
42.0 inch LCD Screen Display Panel LD420EUN-UHA1 for Digital Signage Video Wall
LD420EUN-UHA1 Product details :
| LG Display LCD Screen LD420EUN-UHA1 | |
|---|---|
| manufacturer | LG Display |
| Model P/N | LD420EUN-UHA1 |
| Diagonal Size | 42" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 52PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 927.94(W)×521.96(H) mm |
| Bezel Opening | 933.94(W)×527.96(H) mm |
| Outline Dim. | 945.74(H)×539.76(V)×34.7(D) mm |
| Treatment | Antiglare (Haze 10%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M/1.07B 72% NTSC |
| Light Source | WLED , 60K hours , With LED Driver |
| Spliced Seam | 17.8 mm (active to active seam) |
| Designed For | Digital Signage / Video Wall |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 42.0 inch LCD Screen Display Panel LD420EUN-UHA1 for Digital Signage Video Wall | |
LD420EUN-UHA1 Turnaround Time:
Standard order processing is 2-10 business days plus shipping method chosen. Rush and off-hours service is available for an additional fee. Please contact us via the Whatsapp Message System/Contact Seller.
LD420EUN-UHA1 Shippment & Packing
LD420EUN-UHA1 Packaging and Handling:
Items are safely ESD packaged in custom shipping cartons for protection.
LD420EUN-UHA1 Returns and Refund Policy:
•We do our best to serve each and every customer the best we can.
•You can return your items within 30 days.
•Buyers are responsible for return shipping with proper packaging.
•All items returned as defective will be tested-and if found defective,a replacement will be shipped immediately.
•If you have any other questions,please kindly contact us.
LD420EUN-UHA1 FAQ:
Q: How long will I receive my goods LD420EUN-UHA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of LD420EUN-UHA1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of LD420EUN-UHA1 ?
A: We accept T/T , Paypal , western union .
