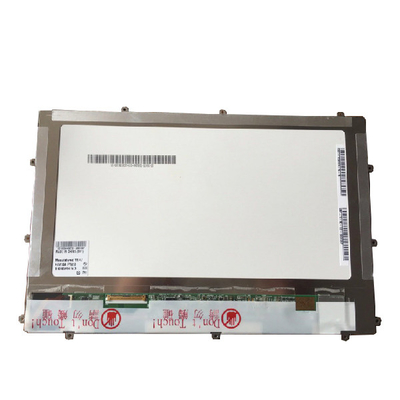

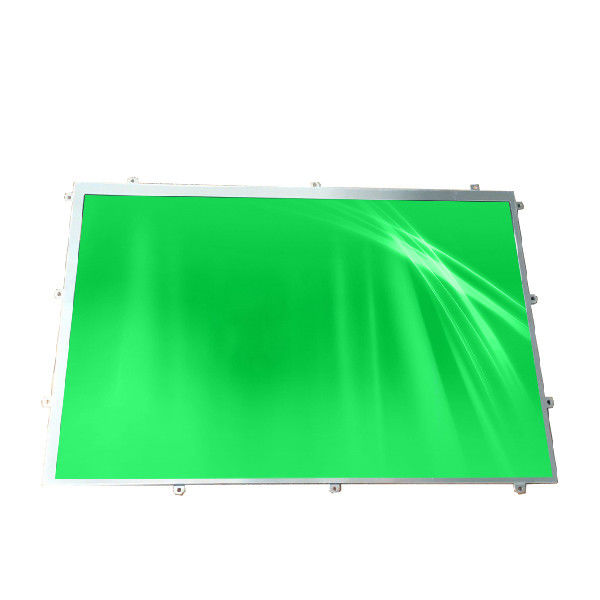

High Brightness 40 Pins LCD Screen Display Panel B101EW04 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW04 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EW04 V0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Active Area: | 216.96(H)×135.6(V) Mm |
| Bezel Opening: | 220.76(H)×139.00(V) Mm | Outline Size: | 229.46(H)×149.1(V) ×5.56(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Response TimeSeam: | 25 (Typ.)(Tr+Td) Ms | Application: | Pad & Tablet |
| High Light: | 40 Pins LCD Screen Display Panel,B101EW04 V0 LCD Screen Display Panel,High Brightness Laptop LCD Screen |
||
Product Description
High Brightness 40 Pins LCD Screen Display Panel B101EW04 V0
10.1 inch 1280x800 B101EW04 V0 40 pins LCD Screen
B101EW04 V0 Product details :
| Manufacturer | AUO |
| Model Name | B101EW04 V0 |
| Screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 (WXGA) 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 216.96(H)×135.6(V) mm |
| Outline(mm) | 229.46(H)×149.1(V) ×5.56(D) mm |
| Visual size | 220.76(H)×139.00(V) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 600:1 (Min.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | WLED [6 strings], 12K hours, no driver |
| Screen weight | 190g (Max.) |
| Refresh rate | 60Hz |
| Used for | Pad & Tablet |
| Touch function | No touch |
| Signal system | 40 pins LVDS (1 ch, 8-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 10.1 inch 1280x800 B101EW04 V0 40 pins LCD Screen | |
B101EW04 V0 About Us:
We currently stock over 18,000,000 items with an MSRP greater than $2 billion dollars. YONGSl offers substantial cost savings while receiving quality products. Thank you again for visiting YONGS. For order questions and technical support please contact us via the Whatsapp Message System/Contact Seller.
B101EW04 V0 Package and shippingtime:
We have a professional team of packs that will pack your package more robustly and let it reach you safely, so you do not have to worry about it.
1. epacket:It usual takes 10-20 workdays to get the parcel.
2. EMS:It usual takes 7-10 workdays to get the parcels.
3. DHL:It usual takes 5-7 workdays to get the parcel.
4. China post :It usual takes 15-40 workdays,Brazil will maybe take more days to get the parcel.
B101EW04 V0 Return policy:
&. When you received the item , if the product does't work or damage , we will resend the new one to you.
&. When you return the product ,Please keep the item in the same condition we offered you.
&. The buyer is responsible for the return shipping.
B101EW04 V0 FAQ:
Q: How can I trace my order of B101EW04 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B101EW04 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B101EW04 V0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LB101EW04 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B101EW04 V0 Shippment & Packing
