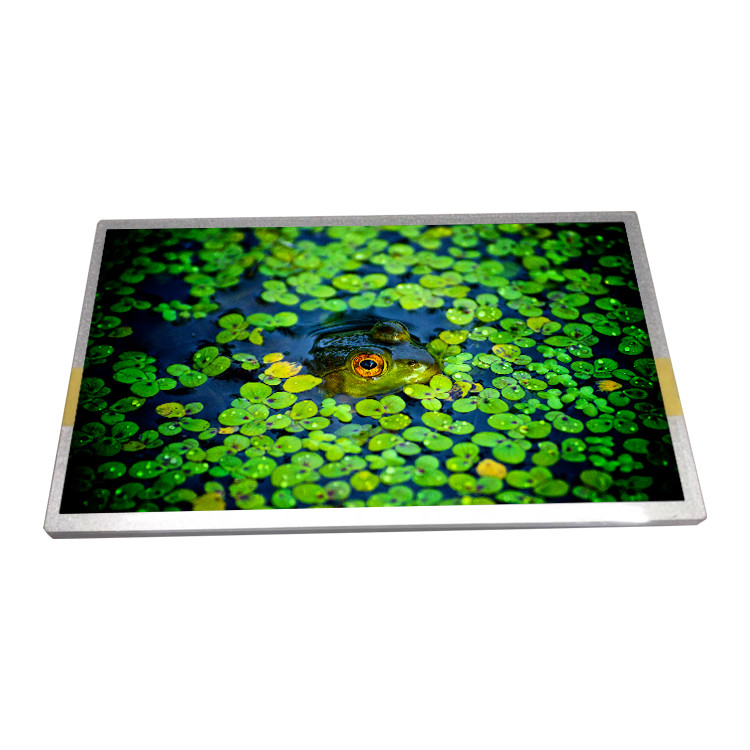

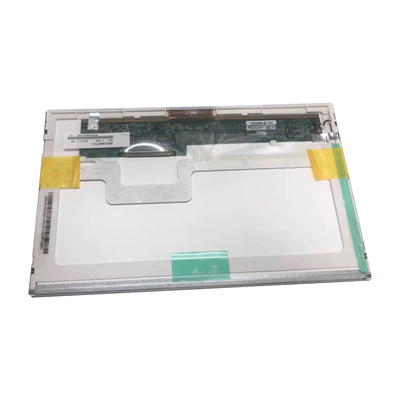

HannStar HSD100IFW4 A00 TFT LCD Display Panel 1024*600 LVDS 30pins
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD100IFW4-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD100IFW4-A00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 118PPI | Active Area: | 220.416(W)×129.15(H) Mm |
| Bezel Opening: | 223.42(W)×132.15(H) Mm | Outline Size: | 235(W)×145.8(H) ×5.8(D) Mm |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Response TimeSeam: | 3/9 (Typ.)(Tr/Td) | Application: | Netbook PC |
| High Light: | HannStar TFT LCD Display Panel,LVDS TFT LCD Display Panel,HSD100IFW4 A00 |
||
Product Description
HannStar HSD100IFW4 A00 TFT LCD Display Panel 1024*600 LVDS 30pins
10.1 inch HannStar HSD100IFW4-A00 TFT LCD display 1024*600 LVDS 30pins LCD Screen
HSD100IFW4-A00 Product details :
| HannStar LCD Screen HSD100IFW4-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD100IFW4-A00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.416(W)×129.15(H) mm |
| Bezel Opening | 223.42(W)×132.15(H) mm |
| Outline Size | 235(W)×145.8(H) ×5.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | WLED , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Netbook PC |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 10.1 inch HannStar HSD100IFW4-A00 TFT LCD display 1024*600 LVDS 30pins LCD Screen | |
HSD100IFW4-A00 About Us:
We currently stock over 18,000,000 items with an MSRP greater than $2 billion dollars. YONGSl offers substantial cost savings while receiving quality products. Thank you again for visiting YONGS. For order questions and technical support please contact us via the Whatsapp Message System/Contact Seller.
HSD100IFW4-A00 Shippment & Packing
HSD100IFW4-A00 Shipping:
Item will be shipped within 1-2 working days after full payment is received,All the fee & tax in oversea must be paid by buyer.
We only ship to the approved address given in PayPal payment. Please make sure payment address in payPal is correct. Any non-received items caused by invalid address registered on PayPal are not in
1.If the number of the need for more, please contact us, we will help you to arrange more quantity
2.we ship it by FEDEX to all the customer,it arrive you in 3-4 days,and some country may be need to pay some duty fees,It depend on the receiver’s country policy.
If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day, Maybe longer.
4.we warranty our products for you.
5.Pay attantion!!!! Please remark your ATTN and phone number in the Paypal when you pay for it by Paypal. It decides to get the goods sooner or later.
HSD100IFW4-A00 Return policy:
&. When you received the item , if the product does't work or damage , we will resend the new one to you.
&. When you return the product ,Please keep the item in the same condition we offered you.
&. The buyer is responsible for the return shipping.
HSD100IFW4-A00 FAQ:
Q: How long will I receive my goods HSD100IFW4-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of HSD100IFW4-A00 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of HSD100IFW4-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account
