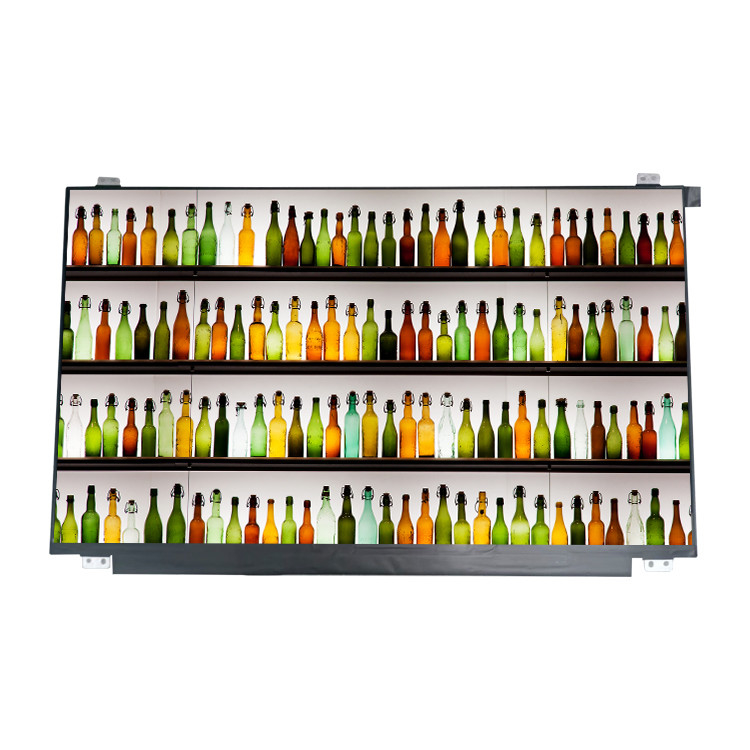

15.6 inch Slim HD 30Pins LCD Laptop Screen Laptop N156BGA-EA3 Rev.C6
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N156BGA-EA3 Rev.C6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N156BGA-EA3 Rev.C6 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Outline(mm): | 350.73 × 216.25 × 3.2 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | Slim HD LCD Laptop Screen,N156BGA EA3 LCD Laptop Screen,HD 30Pins Laptop LCD Display |
||
Product Description
15.6 inch Slim HD 30Pins LCD Laptop Screen Laptop N156BGA EA3 Rev.C6
15.6 inch Slim HD 1366*768 30Pins Laptop LCD Display Screen N156BGA-EA3 Rev.C6
N156BGA-EA3 Rev.C6 Product details :

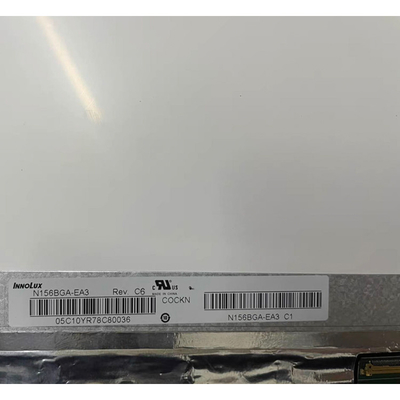

| Innolux LCD Screen N156BGA-EA3 Rev.C6 | |
|---|---|
| Panel Brand | Innolux |
| Model P/N | N156BGA-EA3 Rev.C6 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Outline Size | 350.73(W)×216.25(H) ×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 15.6 inch Slim HD 1366*768 30Pins Laptop LCD Display Screen N156BGA-EA3 Rev.C6 | |
