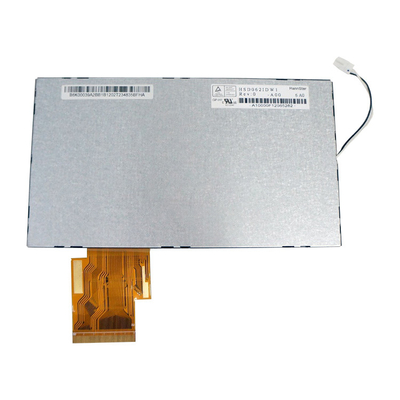

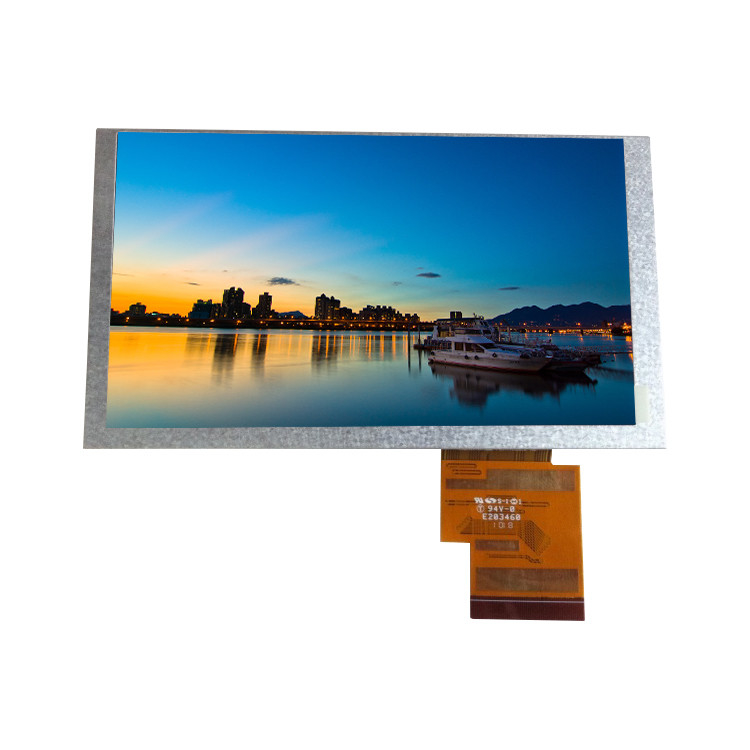

HannStar 6.2 Inch LCD Screen Module HSD062IDW A00 For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD062IDW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD062IDW1-A00 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 150PPI | Outline Dim.: | 137.52(W)×77.232(H) Mm |
| Outline Size: | 155.2(W)×88.2(H) ×5.3(D) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Response Time: | 2/6 (Typ.)(Tr/Td) |
| Panel Weight: | 120g (Typ.) | Application: | Automotive Display |
| High Light: | HannStar 6.2 inch LCD Screen,HSD062IDW1 A00 LCD Screen Module,HSD062IDW1 A00 6.2 inch LCD Screen |
||
Product Description
HannStar 6.2 inch LCD Screen Module HSD062IDW1-A00 for Automotive Display
HSD062IDW1-A00 Product details :
| HannStar LCD Screen HSD062IDW1-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD062IDW1-A00 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Bezel Opening | 140.7(W)×80.4(H) mm |
| Outline Size | 155.2(W)×88.2(H) ×5.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 50% NTSC |
| Lamp Type | 3S7P WLED , 20K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 120g (Typ.) |
| Application | Automotive Display |
| Signal Interface | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HannStar 6.2 inch LCD Screen Module HSD062IDW1-A00 for Automotive Display | |
HSD062IDW1-A00 Useful message:
LCD Parts is fragile, if install improperly, it won' t work, in order to protect your rights, following our suggestion !
1. Our screen is a Replacement parts for Tablets PC ,it is In stock and with great quality, and has 100% tested well, when we shipped, you can see the tracking number in your order.
2. We will ship it with in 48 hours after you finishing the payment.
3. Our goods will ship with the Strong Packing , Antistatic bags +Bubble bag +Carton Box.
4. Before you confirming the screen can work perfectly, please do not use the adhesive to install our screen to your equipment, if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
5. Please test the LCD Screen before installing, take a video when test it, make sure it work good, then install. If LCD screen can't work, please provide us this video, we will provide you solution.
6.Please power off your device/ pull off the battery before you test or install the LCD screen! Other wise it won't work!
7.LCD screen is fragile, very easy to break, please be careful when you test or install !
HSD062IDW1-A00 Shippment & Packing
HSD062IDW1-A00 NOTES:
When we receive your message, we will write back at the first time,
but we are international transactions, the time difference between us, we will reply within 24 hours, thank you for your understanding!
HSD062IDW1-A00 Warranty Service :
- 60 days, quality defects, can a refund or replacement!
- Excluding human damage
HSD062IDW1-A00 FAQ:
Q: Do you accept sample orders of HSD062IDW1-A00 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of HSD062IDW1-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD062IDW1-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HSD062IDW1-A00 ?
A: We accept T/T , Paypal , western union .
