40 Pins Netbook PC LCD Screen Display RGB Vertical Stripe Pixel Format
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EW01 V2 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 233(W)×146.5(H)×3.6(D) Mm | Brightness: | 180 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Application: | Netbook PC |
| High Light: | 40 Pins PC LCD Screen,B101EW01 V2 PC LCD Screen,RGB Vertical Stripe PC Lcd Display |
||
Product Description

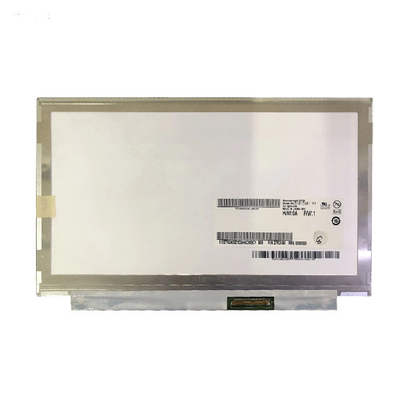

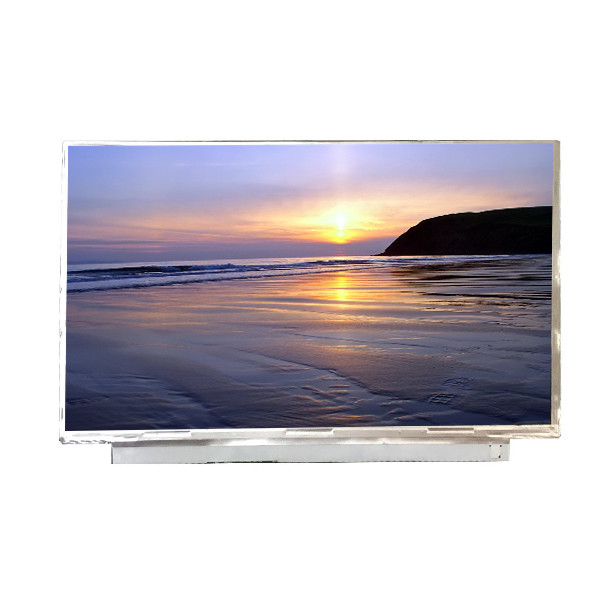

40 Pins Netbook PC LCD Screen Display RGB Vertical Stripe Pixel Format
10.1 inch 1280x720 B101EW01 V2 40 pins for Netbook PC LCD SCREEN
B101EW01 V2 Product details :
| AUO LCD SCREEN B101EW01 V2 | |
| Panel Brand | AUO |
| Panel Model | B101EW01 V2 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Outline Size | 233(W)×146.5(H)×3.6(D) mm |
| Surface | Antiglare |
| Brightness | 180 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 12K hours , With LED Driver |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Application | Netbook PC |
| Frequency | 60Hz |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| 10.1 inch 1280x720 B101EW01 V2 40 pins for Netbook PC LCD SCREEN | |
B101EW01 V2 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
B101EW01 V2 Deliverytime:
Your package will be shipped within 1-3 busine ss days after the payment is cleared.
B101EW01 V2 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B101EW01 V2 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
B101EW01 V2 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the B101EW01 V2 sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel B101EW01 V2 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of B101EW01 V2 ?
A: 90DAYS.
Q: How long will I receive my goods of lcd B101EW01 V2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
B101EW01 V2 Shippment & Packing
