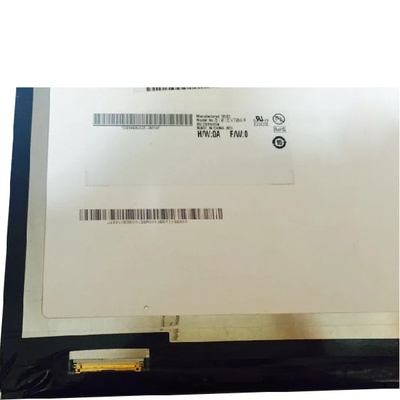

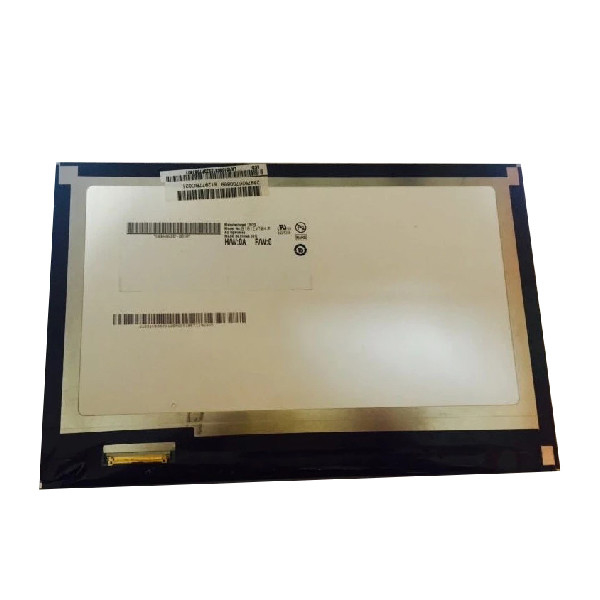

10.1 Inch 262K 45% NTSC LVDS LCD Panel B101EVT04.0 For AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVT04.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EVT04.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Dim: | 253.15(W)×167.75(H) ×6.7(D) Mm | Brightness: | 350 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Number Of Colors: | 262K , 45% NTSC |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Designed For: | Pad & Tablet |
| High Light: | 45% NTSC LVDS LCD Panel,B101EVT04.0 LVDS LCD Panel,262K 10.1 Inch LCD Screen |
||
Product Description
10.1 Inch 262K 45% NTSC LVDS LCD Panel B101EVT04.0 For AUO
10.1 inch 1280*800 lcd panel LVDS B101EVT04.0 for AUO
B101EVT04.0 Product details :
| AUO LCD SCREEN B101EVT04.0 | |
| Panel Brand | AUO |
| Panel Model | B101EVT04.0 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 253.15(W)×167.75(H)×6.7(D) mm |
| Surface | Hard coating (3H), reflectivity 1.5% (Typ.) |
| Brightness | 350 (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Designed For | Pad & Tablet |
| Touch Panel | PCAP, I²C |
| Panel Weight | 265g (Max.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| 10.1 inch 1280*800 lcd panel LVDS B101EVT04.0 for AUO | |
B101EVT04.0 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
B101EVT04.0 Deliverytime:
Your package will be shipped within 1-3 busine ss days after the payment is cleared.
B101EVT04.0 Package and shipping time:
We have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
B101EVT04.0 Quality and Guarantee and customs for free:
1. If you have problems for 1 month after you rec eive your item, you can talk with us, we will try our best to offer you the best solution.
2.if you buy the wrong items or you do not want t he item that you bought, you can return it back to us within 3 days, but you have to offer the shippin g cost.
3.we will be the best price to sell you the product, the price does not include customs fees, if the parcel caused by customs costs, you have to pay yourself.
4. If you do not receive the package , please contact us, we will work with the problem.
B101EVT04.0 FAQ:
Q: How to order lcd panel B101EVT04.0 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will my order 10.1 inch lcd panel B101EVT04.0 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 10.1 inch lcd panel B101EVT04.0 before shipping?
A: Don't Worry , Our AUO LTA084C191F was tested ok before shipping.
Q: What happen if AUO B101EVT04.0 I received can't work ?
A: Our AUO lcd B101EVT04.0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
B101EVT04.0 Shippment & Packing
