B101EVN07.0 LCD TFT LCD Screen Display Panel With LVDS Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVN07.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EVN07.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Dim: | 229.46(W)×149.2(H)×4.4(D) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Number Of Colors: | 262K , 45% NTSC |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Designed For: | Pad & Tablet |
| High Light: | B101EVN07.0 LCD Screen Display Panel,LVDS Interface LCD Screen Display Panel,B101EVN07.0 LVDS Display Panel |
||
Product Description

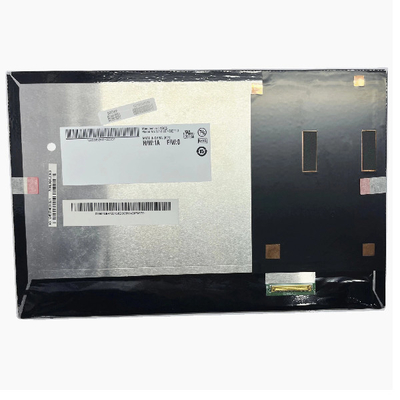

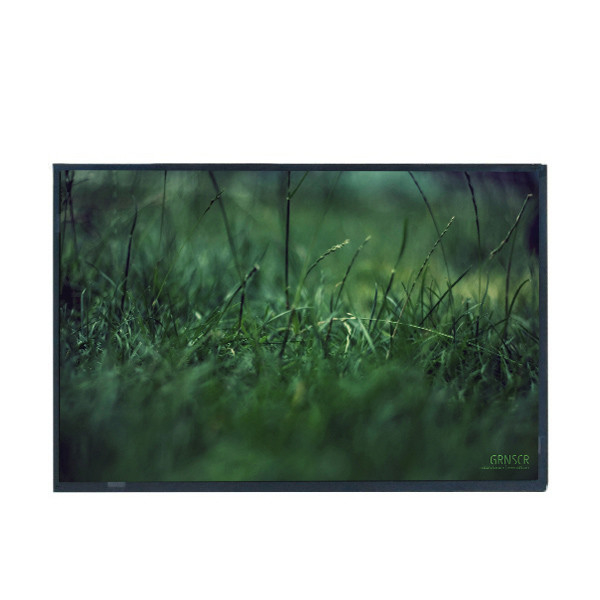

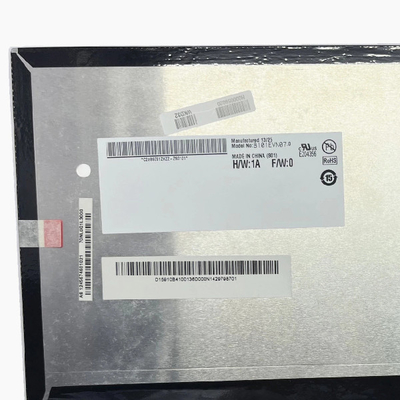

B101EVN07.0 LCD TFT LCD Screen Display Panel With LVDS Interface
10.1 inch 1280x800 B101EVN07.0 LCD TFT display with LVDS interface
B101EVN07.0 Product details :
| Manufacturer | AUO |
| Model Name | B101EVN07.0 |
| Screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 (WXGA) 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 216.96 × 135.6 (H×V) mm |
| Outline Dim. | 229.46 × 149.2 × 4.4 (H×V×D) mm |
| Bezel Opening | 220.36(W)×139.1(H) mm |
| Surface | Hard coating (3H), reflectivity 1.5% (Max.) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 1300: 1 (Typ.) (transmission) |
| Operating Mode | MVA, Normally Black, Transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | WLED , 15K hours , With LED Driver |
| Screen weight | 187g (Max.) |
| Refresh rate | 60Hz |
| Designed For | Pad & Tablet |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 6-bit), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 10.1 inch 1280x800 B101EVN07.0 LCD TFT display with LVDS interface | |
B101EVN07.0 A letter to the buyer:
Dear buyer, if you can't confirm your machine screen, please take the photo off the sending screen, we can confirm your screen through photos, and we are a professional LCD screen supplier, we have a lot of screens. If you want any screen to give us information, due to the time difference, we will respond to the information as soon as we see the information, thank you for watching, the best wishes are given to you. for fast delivery.
B101EVN07.0 Deliverytime:
Your package will be shipped within 1-3 busine ss days after the payment is cleared.
B101EVN07.0 Package and shipping time:
We have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
B101EVN07.0 FAQ:
Q: When will my order 10.1 inch lcd panel B101EVN07.0 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 10.1 inch lcd panel B101EVN07.0 before shipping?
A: Don't Worry , The B101EVN07.0 was tested ok before shipping.
Q: What happen if B101EVN07.0 I received can't work ?
A: The B101EVN07.0 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
