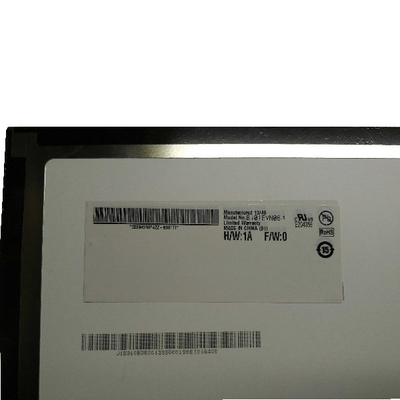

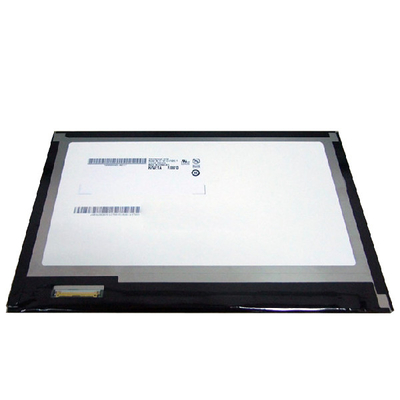

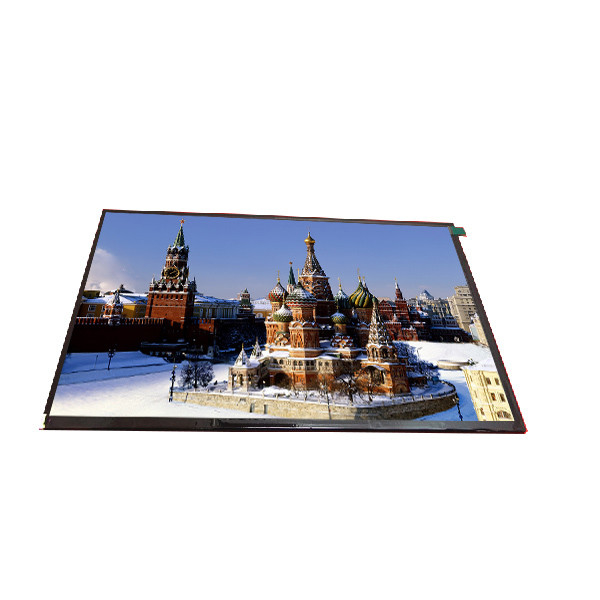

B101EVN06.1 TFT Screen Display 40 Pins Tablet LCD Monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVN06.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EVN06.1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Dim: | 229.46(W)×149.2(H)×4.4(D) Mm | Brightness: | 350 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Number Of Colors: | 262K , 45% NTSC |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Designed For: | Pad & Tablet |
| High Light: | B101EVN06.1 TFT Screen Display,Tablet TFT Screen Display,B101EVN06.1 LCD Display Panel |
||
Product Description
B101EVN06.1 TFT Screen Display 40 Pins Tablet LCD Monitors
10.1 inch 1280x800 B101EVN06.1 40 pins LCD Monitors
B101EVN06.1 Product details :
| Manufacturer | AUO |
| Model Name | B101EVN06.1 |
| Screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 (WXGA) 149PPI |
| Pixel | RGB triangle |
| Display size | 216.96 × 135.6 (H×V) mm |
| Outline Dim. | 229.46 × 149.2 × 4.4 (H×V×D) mm |
| Treatment | Hard coating (3H), reflectivity 1.5% (Max.) |
| Brightness | 350 (Typ.) |
| Contrast | 1300: 1 (Typ.) (transmission) |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | 10S4P WLED, 10K hours, no driver |
| Screen weight | 180g (Max.) |
| Refresh rate | 60Hz |
| Designed For | Pad & Tablet |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 6-bit), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| 10.1 inch 1280x800 B101EVN06.1 40 pins LCD Monitors | |
B101EVN06.1 A letter to the buyer:
Dear buyer, if you can't confirm your machine screen, please take the photo off the sending screen, we can confirm your screen through photos, and we are a professional LCD screen supplier, we have a lot of screens. If you want any screen to give us information, due to the time difference, we will respond to the information as soon as we see the information, thank you for watching, the best wishes are given to you. for fast delivery.
B101EVN06.1 About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
B101EVN06.1 Refund&Return Policy
We will refund you if the screen was damaged during transportation.
Also we pack it very well, don't worry about that.
You can return the items if item was not as description.
B101EVN06.1 Package and shipping time:
we have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
B101EVN06.1 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional
Q: How to order AUO Display LCD B101EVN06.1 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the B101EVN06.1 before shipping ?
A: Of course , our lcd panel LTM04C380K was Strictly tested before shipping.
Q: What happen if the lcd pane B101EVN06.1 received can't work ?
A: AUO Display B101EVN06.1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
B101EVN06.1 Shippment & Packing
