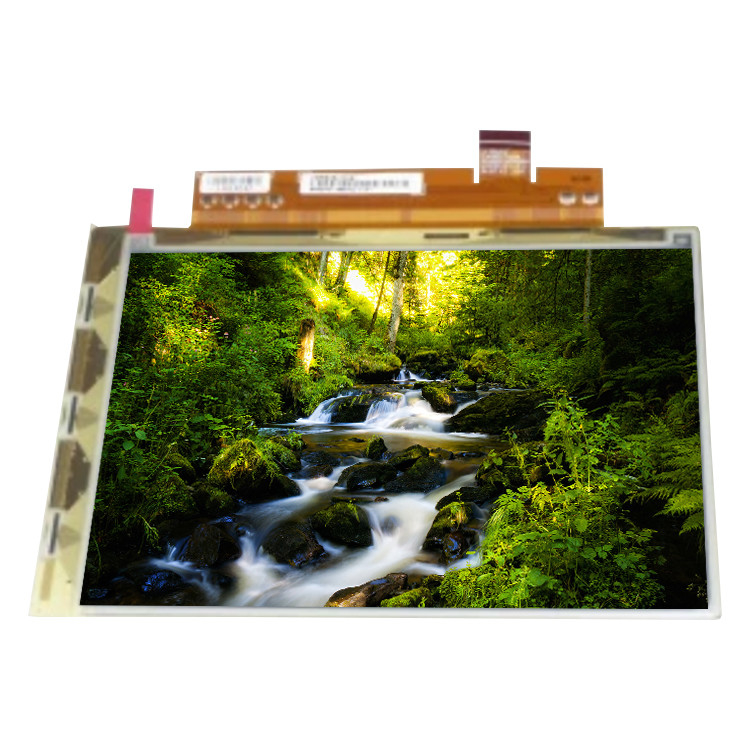

6.6 Inch 720*1612 Resolution LCD Touch Panel Display For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F066A18-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F066A18-6T1 | Diagonal Size: | 6.6" |
|---|---|---|---|
| Resolution: | 720(RGB)×1612 269PPI | Outline Dim.: | 67.932(W)×152.092(H) Mm |
| Bezel Opening: | 69.932(H)×156.592(V)×0.8(D) Mm | Luminance: | 0 Cd/m² |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Touch Panel: | In-Cell Touch, I²C/SPI |
| Plate Thickness: | 0.40+0.40 Mm | Designed For: | Mobile Phone |
| High Light: | Mobile Phone LCD Touch Panel Display,720*1612 Resolution LCD Touch Panel Display,F066A18-6T1 LCD Screen Display |
||
Product Description
6.6 Inch 720*1612 Resolution LCD Touch Panel Display For Mobile Phone
6.6 inch 720*1612 Resolution F066A18-6T1 LCD Screen Display for Mobile Phone
F066A18-6T1 Product details :
| Innolux LCD Screen F066A18-6T1 | |
|---|---|
| Panel Brand | Innolux |
| Model P/N | F066A18-6T1 |
| Diagonal Size | 6.6" |
| Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 720(RGB)×1612 269PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.932(W)×152.092(H) mm |
| Outline (mm) | 69.932×156.592×0.8 (H×V×D) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 3.8% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 64% NTSC |
| Backlight | No B/L |
| Used for | Mobile Phone |
| Touchscreen | In-Cell Touch, I²C/SPI |
| Driver IC list | Built-in COG TD4160, ILI9883A, FT8057, ICNL9916, HX83108-A |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 6.6 inch 720*1612 Resolution F066A18-6T1 LCD Screen Display for Mobile Phone | |
F066A18-6T1 Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
F066A18-6T1 Shippment & Packing
F066A18-6T1 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
F066A18-6T1 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
F066A18-6T1 FAQ:
Q: Can You declare my order of F066A18-6T1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of F066A18-6T1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of F066A18-6T1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods F066A18-6T1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
