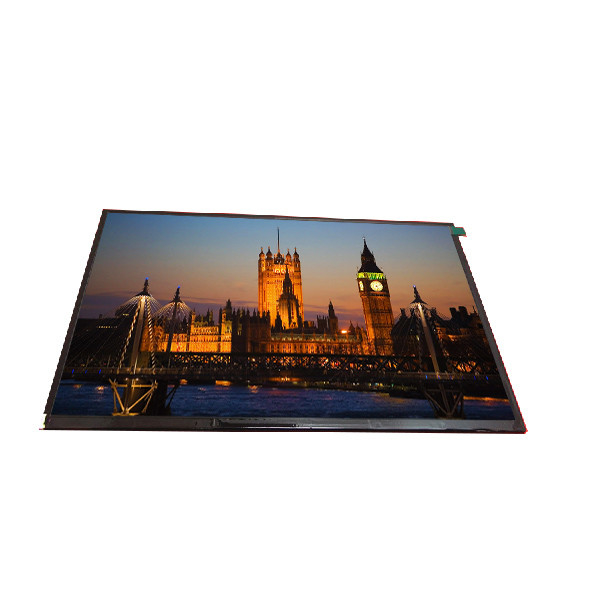

B101EVN06.0 40 Pins Flat LCD Screen Display Panel 262K 45% NTSC
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVN06.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EVN06.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Dim: | 229.46(W)×149.2(H)×4.4(D) Mm | Brightness: | 350 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Number Of Colors: | 262K , 45% NTSC |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Designed For: | Pad & Tablet |
| High Light: | B101EVN06.0 LCD Screen Display Panel,45% NTSC LCD Screen Display Panel,B101EVN06.0 Flat Screen PC Monitor |
||
Product Description
B101EVN06.0 40 Pins Flat LCD Screen Display Panel 262K 45% NTSC
10.1 inch 1280*800 B101EVN06.0 40 pins LCD SCREEN
B101EVN06.0 Product details :
| AUO LCD Screen B101EVN06.0 | |
| Panel Brand | AUO |
| Panel Model | B101EVN06.0 |
| Screen size | 10.1inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB vertical bars |
| Display size | 216.96(W)×135.6(H) mm |
| Outline Dim. | 229.46(W)×149.2(H)×4.4(D) mm |
| Surface | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Responding speed | 25 (Typ.)(Tr+Td) ms |
| Operating Mode | MVA, Normally Black, Transmissive |
| Number of colors | 262K , 45% NTSC |
| Backlight type | WLED |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Screen weight | 135g (Max.) |
| Signal system | Parallel RGB (1 ch 6-bit) + spi FPC 40 pins |
| 10.1 inch 1280*800 B101EVN06.0 40 pins LCD SCREEN | |
B101EVN06.0 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B101EVN06.0 About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
B101EVN06.0 Refund&Return Policy
We will refund you if the screen was damaged during transportation.
Also we pack it very well, don't worry about that.
You can return the items if item was not as description.
B101EVN06.0 Package and shipping time:
we have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
B101EVN06.0 FAQ:
Q: If I place order now,when will you ship the goods of B101EVN06.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods B101EVN06.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of B101EVN06.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B101EVN06.0 Shippment & Packing
