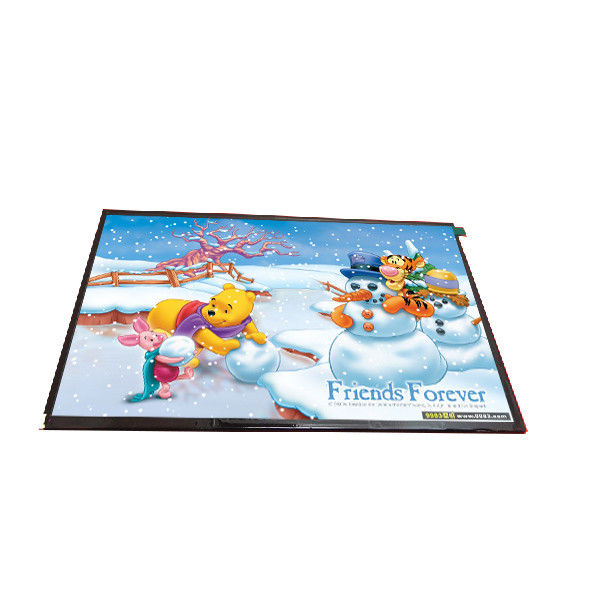

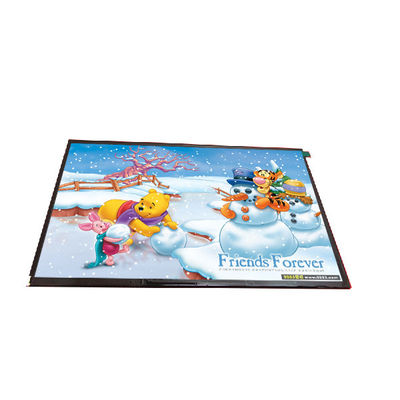

10.1 Inch 1280*800 149PPI RGB LCD Display Panel FOR AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EVN05.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EVN05.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Display Size: | 216.96(W)×135.6(H) Mm |
| Outline Dim: | 229.66(H)×149.4(V)×5.3(D) Mm | Brightness: | 340 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Number Of Colors: | 262K , 45% NTSC |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Designed For: | Pad & Tablet |
| High Light: | 149PPI RGB LCD Display,AUO TFT LCD Panel,B101EVN05.0 LCD Screen Panel |
||
Product Description
10.1 Inch 1280*800 149PPI Touch Screen LCD Display FOR AUO
10.1 inch 1280*800 149PPI B101EVN05.0 LCD SCREEN FOR AUO
B101EVN05.0 Product details :
| AUO LCD Screen B101EVN05.0 | |
| Panel Brand | AUO |
| Panel Model | B101EVN05.0 |
| Screen size | 10.1inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800 WXGA 149PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 216.96(W)×135.6(H) mm |
| Outline Dim | 229.66(H)×149.4(V)×5.3(D) mm |
| Brightness | 340 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Responding speed | 25 (Typ.)(Tr+Td) ms |
| Display mode | MVA, Normally Black, Transmissive |
| Number of colors | 262K , 45% NTSC |
| Backlight type | WLED , 15K hours, with LED driver |
| refresh rate | 60Hz |
| Rcreen weight | 336g (Max.) |
| Designed For | Pad & Tablet |
| Interface Type | 40 pins LVDS (1 ch, 6-bit) , terminal |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 10.1 inch 1280*800 149PPI B101EVN05.0 LCD SCREEN FOR AUO | |
