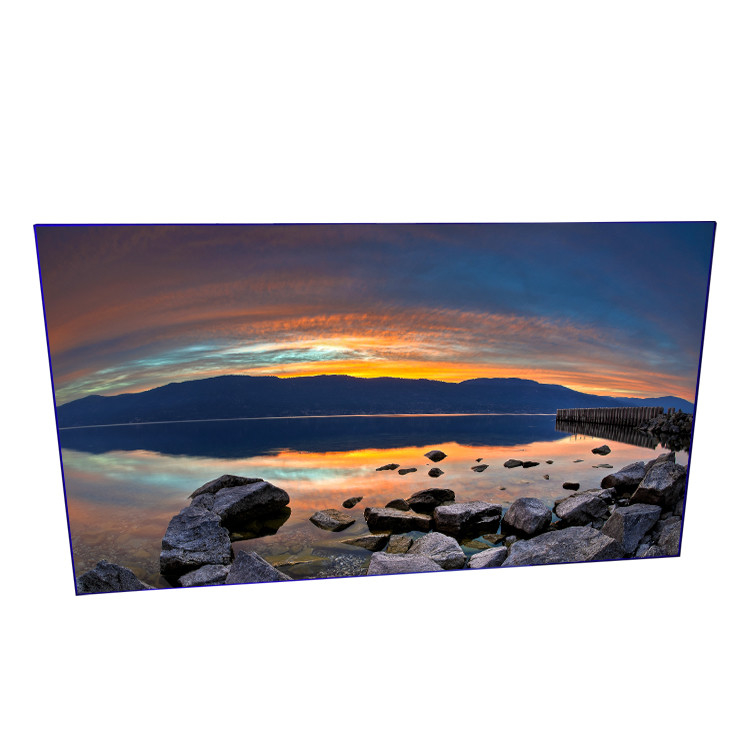

65.0 inch S650HJ4-S02 Ultra narrow bezel LCD panel screen for replacement control room screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | S650HJ4-S02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | S650HJ4-S02 | Diagonal Size: | 65" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 34PPI | Active Area: | 1428.48(W)×803.52(H) Mm |
| Bezel Opening: | 1428.68(W)×803.72(H) Mm | Outline Size: | 1432.33(W)×807.37(H) ×58.26(D) Mm |
| Brightness: | 700 Cd/m² (Typ.) | Contrast Ratio: | 5000:1 (Typ.) (TM) |
| Videowall Seam: | 3.8 Mm (active To Active Seam) | Application: | Video Wall |
| Highlight: | lcd screen wall,lcd video wall display,video wall lcd monitors |
||
Product Description
65.0 inch S650HJ4-S02 Ultra narrow bezel LCD panel screen for replacement control room screen
S650HJ4-S02 Product details :
| Innolux LCD Screen S650HJ4-S02 | |
|---|---|
| manufacturer | Innolux |
| Model P/N | S650HJ4-S02 |
| Diagonal Size | 65" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 34PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1428.48(W)×803.52(H) mm |
| Bezel Opening | 1428.68(W)×803.72(H) mm |
| Outline Dim. | 1432.33(W)×807.37(H)×58.26(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 9.5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | Super MVA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Spliced Seam | 3.8 mm (active to active seam) |
| Designed For | Video Wall |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 65.0 inch S650HJ4-S02 Ultra narrow bezel LCD panel screen for replacement control room screen | |
S650HJ4-S02 NOTE :
If you are unsure about the suitability or compatibility of any item, or if you are experiencing any difficulty with your order, before doing anything else, please do get in touch with us. Our offices are open Monday to Friday between 9am and 5:30pm GMT. We have an excellent customer service team who provide outstanding before and after sale services.
Please note that part numbers given in auction titles are there to help you find a compatible screen for your current part number. It is not guaranteed that you will receive the same part number as that given in the auction title. You will receive a 100% compatible item of equal or better quality than the original part number. Some part numbers are now no longer available or have been superceded. In addition, the pictures shown on the auction listing are illustrative examples only to show the position of the data connector and the fixing points.
In the unlikely event your item arrives with physical damage, we need to be notified within 24 hours of signing for the goods, whereupon we will immediately send a replacement. We will then make a claim against the courier for damages, you will need to keep the original item with all original packaging for them to inspect it. We cannot accept any claims outside of this time frame sorry.
S650HJ4-S02 Shippment & Packing
S650HJ4-S02 Warranty/Returns:
We are happy to announce that all the LCD / LED Screens purchased from us comes with 90 days replacement warranty.
Please note that warranty only cover against defects in material and workmanship. While defects, malfunctions, or failures of the warranted product(s) caused by damage resulting from acts of God (such as floods, fire, etc.), environmental and atmospheric disturbances, other external forces such as power line disturbances, host computer malfunction, plugging the board in under power, or incorrect cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, are not warranted.
If the product(s) became faulty during this period we will be happy to replace it. Simply contact us first and further instructions will be provided.
Extended 12 month Warranty can be purchased for all LCD / LED screens, please contact us for further information.
We comply with the Consumer Contracts Regulations as of 13th June 2014, therefore we will offer 14 days peace of mind guarantee (refund or exchange). Refund will not be considered after the 14 days.
All return items must be in their original condition, present with all original packaging.
S650HJ4-S02 FAQ:
Q: Can you give me a discount if I need a large quantity of S650HJ4-S02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of S650HJ4-S02 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of S650HJ4-S02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of S650HJ4-S02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
