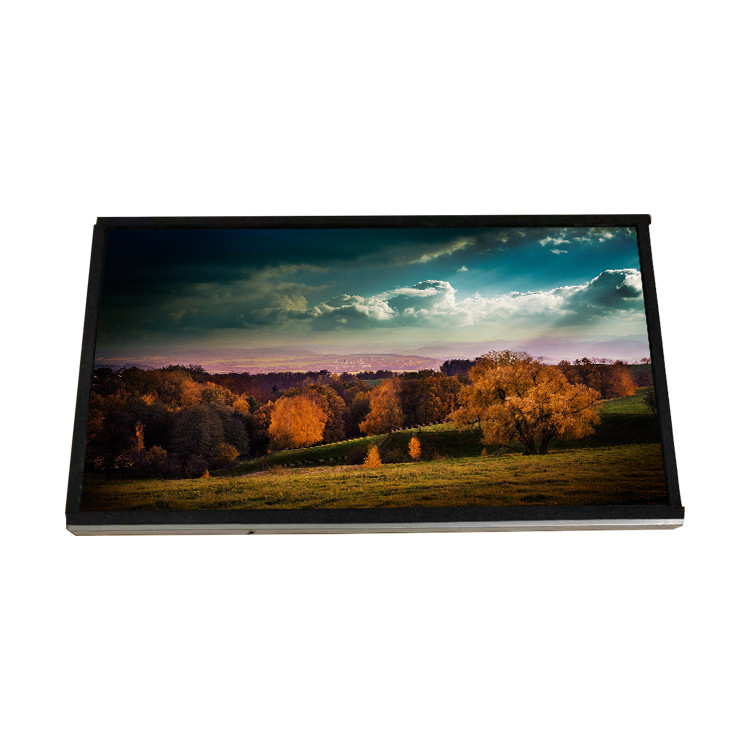

10.1 Inch 200cd LCD Screen Display Panel Antiglare TFT Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW2-B01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD101PFW2-B01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 225.72(W)×128.26(H) Mm | Outline Size: | 235(W)×143(H) ×5.2(D) Mm |
| Brightness: | 200cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Display Colors: | 262K 50% NTSC | Application: | Netbook PC / Digital Photo Frame / Portable DVD Player |
| High Light: | 200cd LCD Screen Display Panel,HSD101PFW2 B01,Antiglare TFT Display Module |
||
Product Description
10.1 Inch 200cd LCD Screen Display Panel Antiglare TFT Screen Module

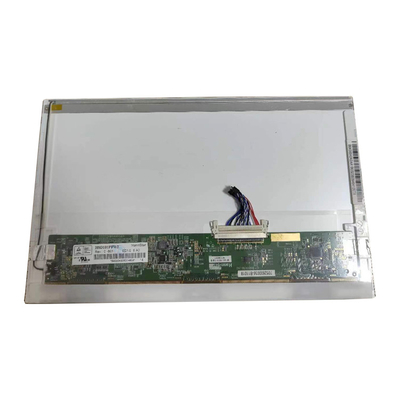

10.1 inch HSD101PFW2-B01 LCD screen LCD display TFT Module
HSD101PFW2-B01 Product details :
| HannStar LCD Screen HSD101PFW2-B01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PFW2-B01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 225.72(W)×128.26(H) mm |
| Outline Size | 235(W)×143(H) ×5.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 10.1 inch HSD101PFW2-B01 LCD screen LCD display TFT Module | |
HSD101PFW2-B01 Project conditions:
The item has been carefully removed from the new machine and is in A-level condition, 100% functioning properly.
Please ensure that the connector position matches the connector on the old screen.
HSD101PFW2-B01 Shippment & Packing
HSD101PFW2-B01 Transportation:
Our current delivery method is through DHL transportation. Once the item is shipped, we can provide a tracking number based on the item selected during the checkout stage and the delivery method. Items can be tracked through the DHL website.
The project will be shipped within 24 hours after receiving payment (excluding weekends and public holidays). Please allow a maximum delivery time of 7 working days (unless unforeseen circumstances beyond our control occur). The UK mainland is expected to deliver normally within 2-3 working days.
Due to security reasons, we will only mail items to our registered address based on our PayPal/eBay account.
HSD101PFW2-B01 Warranty / Returns:
Item is Covered by a 30 day warranty from the moment of delivery.
If you experience any problems with your item, please contact us as soon as possible. We will be glad to assist in any way possible.
Please always check the part number on your old part to ensure the part will fit and work properly.
HSD101PFW2-B01 FAQ:
Q: If I place order now,when will you ship the goods of HSD101PFW2-B01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of HSD101PFW2-B01 ?
A: Of course!sample order is welcome !
Q: How to make payment of HSD101PFW2-B01 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of HSD101PFW2-B01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
