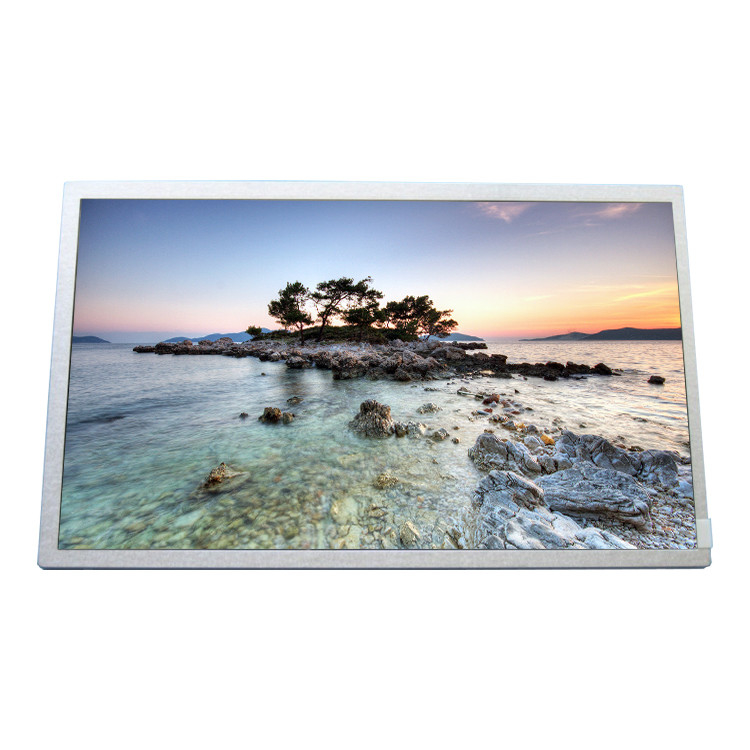

HSD100IFW1 A00 HannStar flat panel lcd monitor For Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD100IFW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD100IFW1-A00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 118PPI | Active Area: | 220.416(W)×129.15(H) Mm |
| Bezel Opening: | 223.42(W)×132.15(H) Mm | Outline(mm): | 235 × 145.8 × 5.8 (H×V×D) |
| Treatment: | Antiglare, Hard Coating (3H) | Luminance: | 250 Cd/m² (Typ.) |
| Color Depth: | 262K | Used For: | Netbook PC / Digital Photo Frame / Portable DVD Player |
| High Light: | HSD100IFW1 A00 Flat Panel Lcd Monitor,HannStar Flat Panel Lcd Monitor,HSD100IFW1 A00 |
||
Product Description
HSD100IFW1 A00 HannStar Flat Panel Lcd Monitor For Digital Photo Frame
HSD100IFW1-A00 HannStar 10.1 inch lcd Screen display module for Digital Photo Frame
HSD100IFW1-A00 Product details :
| HannStar LCD Screen HSD100IFW1-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD100IFW1-A00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.416(W)×129.15(H) mm |
| Bezel Opening | 223.42(W)×132.15(H) mm |
| Outline(mm) | 235 × 145.8 × 5.8 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | WLED , With LED Driver |
| Used for | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HSD100IFW1-A00 HannStar 10.1 inch lcd Screen display module for Digital Photo Frame | |
HSD100IFW1-A00 DISPATCH AND PAYMENT:
(a) Unless otherwise stated the price quoted is packed ex our warehouse. An extra charge may be levied to cover delivery and insurance costs. A charge may be made to cover any extra costs involved in delivery to a different address.
(b) Should expedited delivery be agreed an extra fee may be charged to cover any overtime or any other additional costs involved.
(c) Should work be suspended at the request of or delayed through any default of the Buyer for a period of 30 (Thirty) days the Company shall then be entitled to payment for work already carried out, materials specially ordered and other additional costs including storage.
(d) All items purchased before 16.30 on any working day will be dispatched same day. We ship worldwide.
HSD100IFW1-A00 Shippment & Packing
HSD100IFW1-A00 Warm Reminder:
(1). To Brazil buyers, Need to offer us CNPJ or CPF if ship the goods by DHL/FEDEX/EMS.
(2). To Russia buyers, The goods only can be shipped by EMS , The buyer need to offer full name of receiver!
(3). The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
(4). To remote areas buyers , If ship the order by FEDEX/DHL , Need to add extra fee USD30.00 , Hope buyer can understand us.
HSD100IFW1-A00 Return Policy:
If item is defective, or sent wrong you may return the item within 14 days for a replacement or full refund.
Buyers are responsible for the return shipping cost and any fees.
Pls contact us first with any issues,we are happy to be at your service at any time.)
HSD100IFW1-A00 FAQ:
Q: How long will I receive my goods HSD100IFW1-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD100IFW1-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD100IFW1-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of HSD100IFW1-A00 ?
A: The order will be shipped within 2-3 working days after received your payment.
