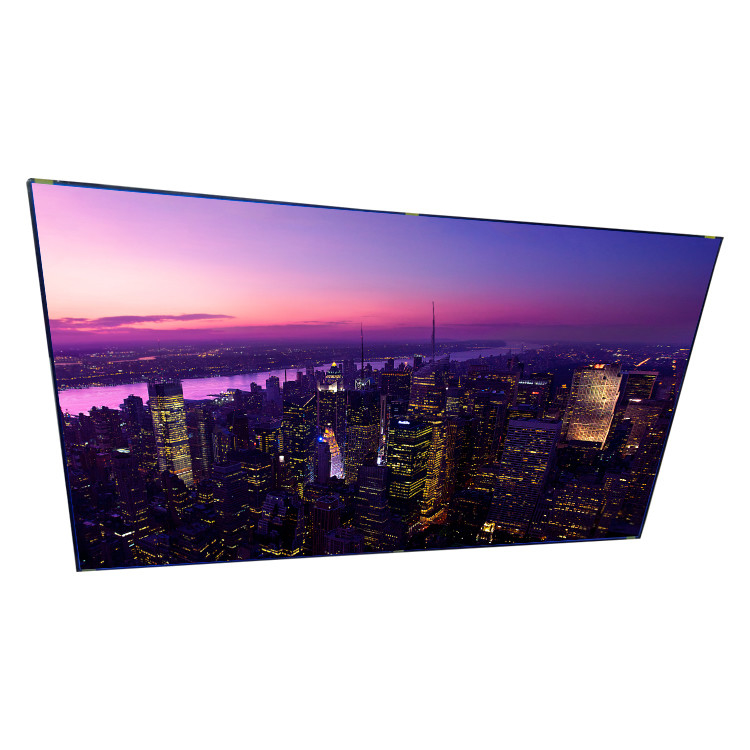

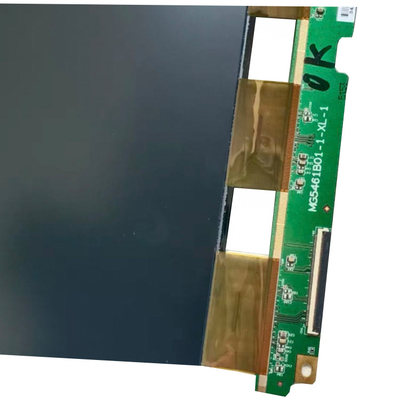

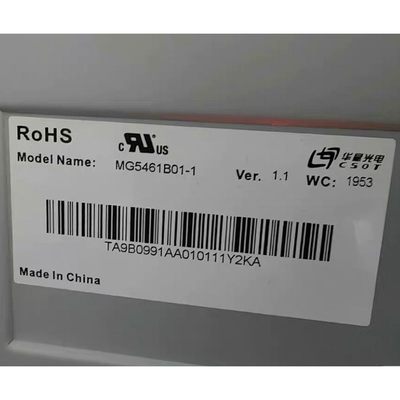

MG5461B01-1 55.0 inches 1920*1080 LVDS 51pins LCD Screen Display for Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | MG5461B01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | MG5461B01-1 | Diagonal Size: | 55" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 40PPI | Active Area: | 1209.6(W)×680.4(H) Mm |
| Outline(mm): | 1213.5(W)×684.3(H) | Luminance: | 500 (Typ.)(cd/m²) |
| Contrast Ratio: | 4000 : 1 (Typ.) (TM) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Splicing Seam: | 3.9 Mm (active To Active Seam) | Used For: | Video Wall |
| Highlight: | lcd screen wall,lcd video wall display,video wall lcd monitors |
||
Product Description
MG5461B01-1 55.0 inches 1920*1080 LVDS 51pins LCD Screen Display for Video Wall
MG5461B01-1 Product details :
| CSOT LCD Screen MG5461B01-1 | |
|---|---|
| manufacturer | CSOT |
| Model P/N | MG5461B01-1 |
| Diagonal Size | 55" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1209.6(W)×680.4(H) mm |
| Outline Size | 1213.5(W)×684.3(H)(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 6.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , With LED Driver |
| Splicing Seam | 3.9 mm (active to active seam) |
| Used for | Video Wall |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| MG5461B01-1 55.0 inches 1920*1080 LVDS 51pins LCD Screen Display for Video Wall | |
MG5461B01-1 We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
MG5461B01-1 Shippment & Packing
MG5461B01-1 Shipping:
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
MG5461B01-1 RETURNS:
All items qualify for returns within 30 days of receipt.All returns must be in the condition as received and must include the original packaging and content in-tact.Returns should be packed in proper packaging to avoid damage to the item.For any return request, please contact our Customer Support through the eBay messaging system and you will be assigned an RMA number and instructions on how to proceed with the return. A 15% re-stocking fee may apply.Please allow 3-5 business days for us to process the refund once we receive the item back.Any returns that violate this return policy will not be accepted and will be sent back and the customers' expense.All items returns are subject to a fee if they are not needed or wrong items purchased ; restocking fee is 15% , please contact us if you have any doubts of the part you need to avoid restocking fees.Please note: All serial numbers are recorded to protect against fraud and we diligently check all incoming returns to ensure the item is not switched.
MG5461B01-1 FAQ:
Q: How long will I receive my goods MG5461B01-1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of MG5461B01-1 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of MG5461B01-1 via credit card ?
A: Yes!you can use your credit card through your Paypal account
