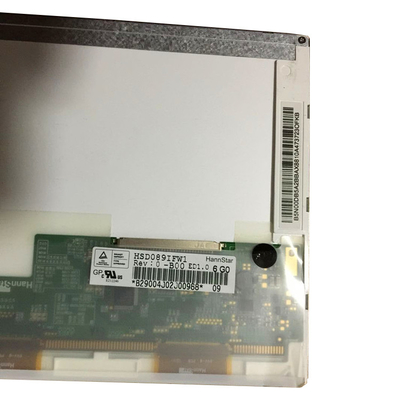

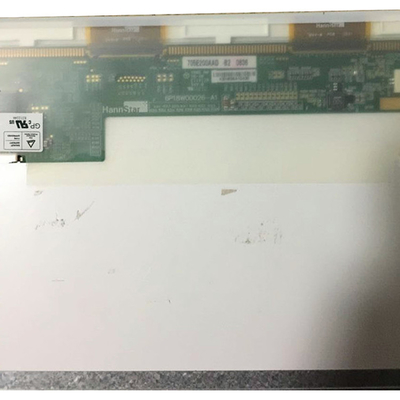

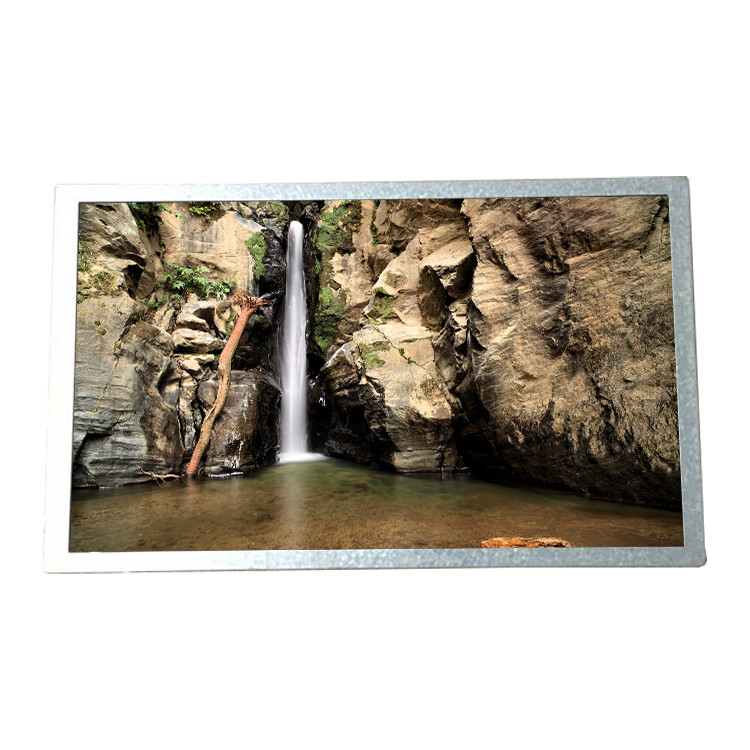

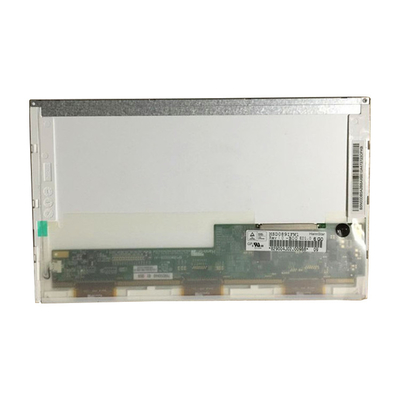

HSD089IFW1 B00 8.9 Inch 1024*600 LCD Screen Panel LCD TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD089IFW1-B00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD089IFW1-B00 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 133PPI | Active Area: | 195.072(W)×113.4(H) Mm |
| Bezel Opening: | 198.27(W)×116.6(H) Mm | Outline(mm): | 213.36 × 129.55 × 5.45 (H×V×D) |
| Luminance: | 220 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Backlight: | WLED , With LED Driver | Used For: | Netbook PC / Digital Photo Frame / Portable DVD Player |
| High Light: | HSD089IFW1 B00 LCD Screen Display Panel,WSVGA 133PPI TFT Display Module,HSD089IFW1 B00 |
||
Product Description
HSD089IFW1 B00 8.9 Inch 1024*600 LCD Screen Panel LCD TFT Module
HSD089IFW1-B00 8.9 inch 1024*600 LCD screen panel LCD display TFT Module
HSD089IFW1-B00 Product details :
| HannStar LCD Screen HSD089IFW1-B00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD089IFW1-B00 |
| Diagonal Size | 8.9" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 195.072(W)×113.4(H) mm |
| Bezel Opening | 198.27(W)×116.6(H) mm |
| Outline(mm) | 213.36 × 129.55 × 5.45 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | WLED , With LED Driver |
| Used for | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HSD089IFW1-B00 8.9 inch 1024*600 LCD screen panel LCD display TFT Module | |
