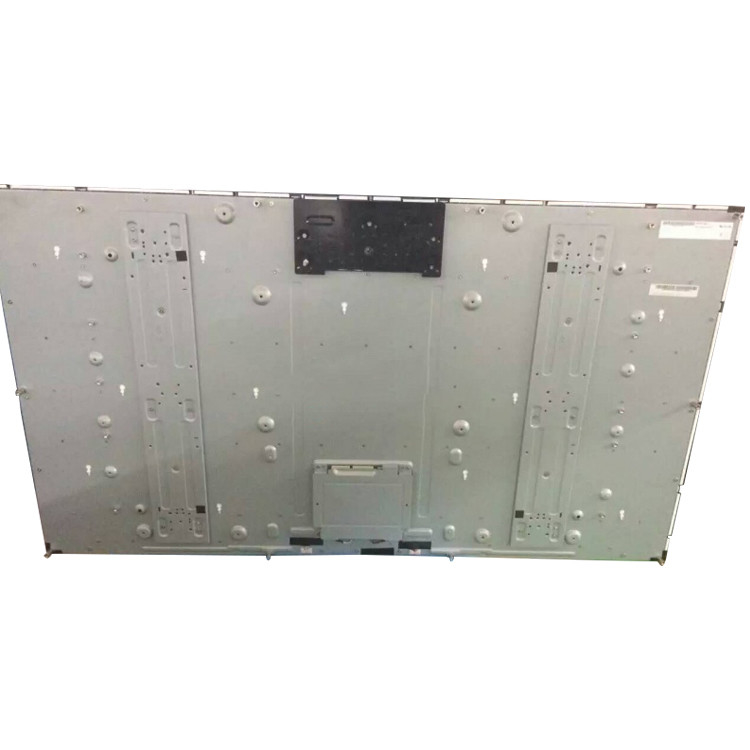

P460HVN01.1 51 Pin 46.0 Inch Tft Screen 1920*1080 Tft Lcd Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P460HVN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | P460HVN01.1 | Diagonal Size: | 46" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 47PPI | Active Area: | 1018.08(W)×572.67(H) Mm |
| Bezel Opening: | 1018.68(W)×573.27(H) Mm | Outline Dim.: | 1023.68(H)×578.27(V) ×55.2(D) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Contrast Ratio: | 4000:1 (Typ.) (TM) |
| Spliced Seam: | 5.6 Mm (active To Active Seam) | Designed For: | Video Wall |
| Highlight: | lcd screen wall,lcd video wall display,video wall lcd monitors |
||
Product Description
P460HVN01.1 51 Pin 46.0 Inch Tft Screen 1920*1080 Tft Lcd Module
P460HVN01.1 Product details :
| AUO LCD Screen P460HVN01.1 | |
|---|---|
| manufacturer | AUO |
| Model P/N | P460HVN01.1 |
| Diagonal Size | 46" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1018.08(W)×572.67(H) mm |
| Bezel Opening | 1018.68(W)×573.27(H) mm |
| Outline Dim. | 1023.68(H)×578.27(V) ×55.2(D) mm |
| Treatment | Antiglare (Haze 11%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 6.5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Support Color | 1.07B 72% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Spliced Seam | 5.6 mm (active to active seam) |
| Designed For | Video Wall |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| P460HVN01.1 51 Pin 46.0 Inch Tft Screen 1920*1080 Tft Lcd Module | |
P460HVN01.1 Payment:
Dear friend, thank you for visiting my listing!
We offer the state of the art products, which include motors,drives,switch,modules,CUP,electronic accessories,motherboards, custom built computers, refurbished desktops, refurbished laptops, monitors, printers, desktop & laptop accessories/parts & much more!!
Write to me if you need additional elements for this product, such as RAM, processor, video card or something else. I can provide a large number of spare parts for old PCs.
If you buy several goods, I will send them by express delivery for free or make a discount (we can discuss this via private messages)!
P460HVN01.1 Shippment & Packing
P460HVN01.1 Shipping:
We are shipping the goods to every country of the world!
Usually the goods will be sent at the next working day after payment, the shipping time depends on your country of residence, depending on your country's customs!
Our default shipping method is Hong Kong Air mail, Please read the following delivery time carefully! And predicte the delivery time acording to your country of residence, if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!
P460HVN01.1 Returns:
1. We offer 30 days return policy. Please contact us within 30 days from the date you receive your order if you have any issues with the product and would like to return.
2. If you are not satisfied when you received your item , please contact us before you return it
P460HVN01.1 FAQ:
Q: How long will I receive my goods P460HVN01.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of P460HVN01.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of P460HVN01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of P460HVN01.1 ?
A: Of course!sample order is welcome !
