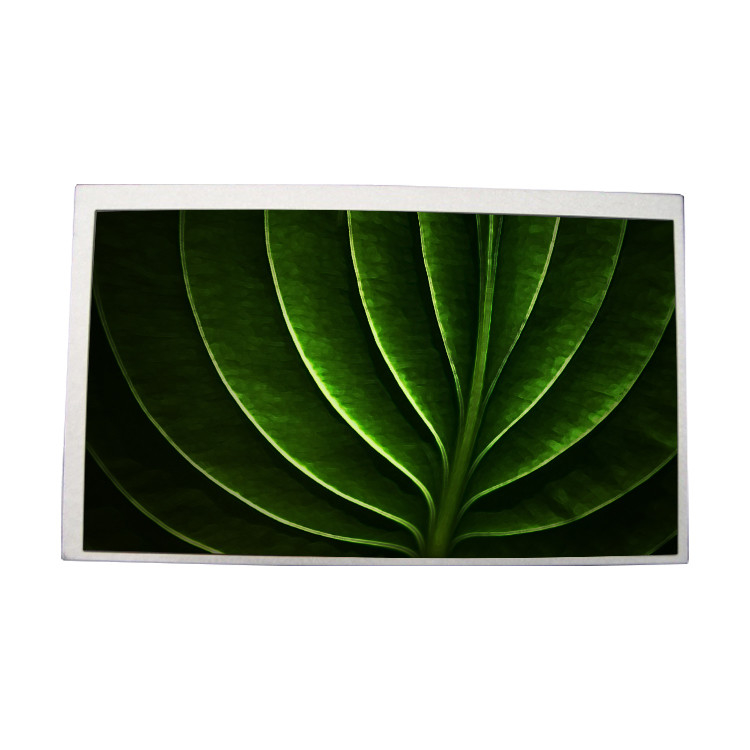

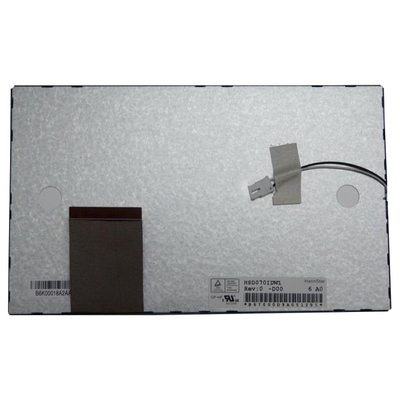

WVGA 134PPI HSD070IDW1 D00 LCD Digitizer Screen For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-D00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070IDW1-D00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Bezel Opening: | 156.0(W)×90.1(H) Mm | Outline Dim.: | 164.9(H)×100(V) ×6(D) Mm |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Weight: | 170g (Typ.) | Designed For: | Automotive Display |
| High Light: | HSD070IDW1 D00 LCD Digitizer Screen,Automotive LCD Digitizer Screen,HSD070IDW1 D00 LCD Display Panel |
||
Product Description
WVGA 134PPI HSD070IDW1 D00 LCD Digitizer Screen For Automotive Display
7.0 inch 800*480 HSD070IDW1-D00 LCD Display Pane digitizer Screen for Automotive Display
HSD070IDW1-D00 Product details :
| HannStar LCD Screen HSD070IDW1-D00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070IDW1-D00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×90.1(H) mm |
| Outline Dim. | 164.9(H)×100(V) ×6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED [3S7P] , 20K hours , W/O Driver |
| Weight | 170g (Typ.) |
| Designed For | Automotive Display |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 7.0 inch 800*480 HSD070IDW1-D00 LCD Display Pane digitizer Screen for Automotive Display | |
HSD070IDW1-D00 Payments:
We accept paypal only.
Buyer is under obligation if (in case) the item is liable to your country's customs duties. We are not responsible for your country's any taxe or customs fee. Our prices do NOT include any customs duty or tax. Please verify it.
HSD070IDW1-D00 Shippment & Packing
HSD070IDW1-D00 Shipping:
We are shipping the goods to every country of the world!
Usually the goods will be sent at the next working day after payment, the shipping time depends on your country of residence, depending on your country's customs!
And predicte the delivery time acording to your country of residence, if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!
If you need other shipping methods, such as Fedex/ DHL or other shipping methods, required additional
HSD070IDW1-D00 Warm Reminder:
(1). To Brazil buyers, Need to offer us CNPJ or CPF if ship the goods by DHL/FEDEX/EMS.
(2). To Russia buyers, The goods only can be shipped by EMS , The buyer need to offer full name of receiver!
(3). The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
(4). To remote areas buyers , If ship the order by FEDEX/DHL , Need to add extra fee USD30.00 , Hope buyer can understand us.
HSD070IDW1-D00 FAQ:
Q: How long will I receive my goods HSD070IDW1-D00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD070IDW1-D00 ?
A:Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD070IDW1-D00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders of HSD070IDW1-D00 ?
A: Of course!sample order is welcome !
