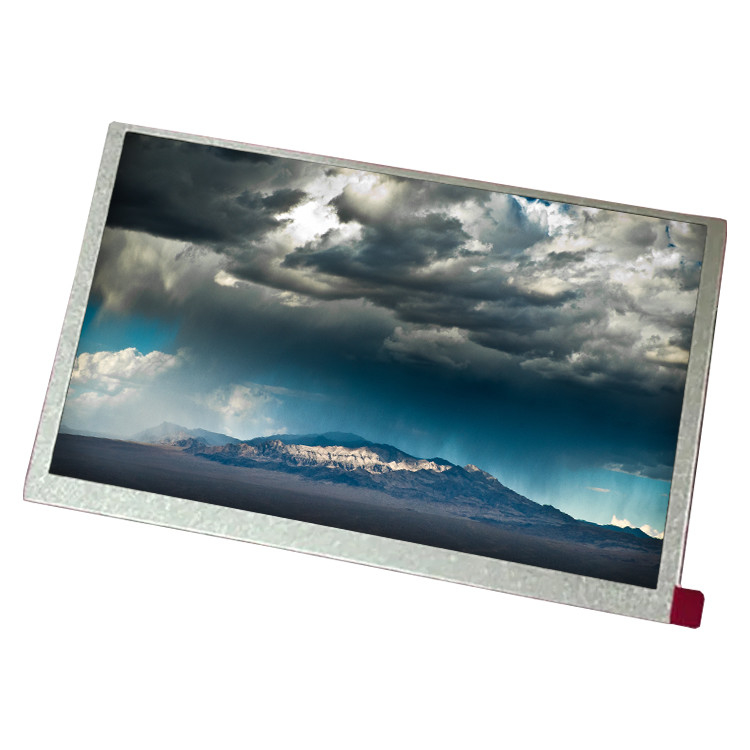

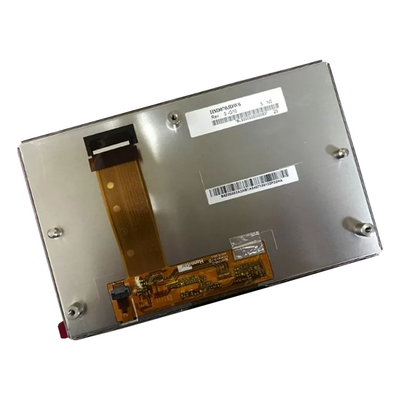

HSD070JDW6-G10 7.0 inch 800*480 40pin LVDS screen Lcd Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070JDW6-G10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070JDW6-G10 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 154.4(W)×93.44(H) Mm | Outline(mm): | 165 × 104.07 × 14 (H×V×D) |
| Luminance: | 1250 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Mass: | TBD | Used For: | Automotive Display |
| High Light: | LCD Screen For Tablet,lcd display panel,tft screen display |
||
Product Description
HSD070JDW6-G10 7.0 inch 800*480 40pin LVDS screen Lcd Display panel
HSD070JDW6-G10 Product details :
| HannStar LCD Screen HSD070JDW6-G10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070JDW6-G10 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.44(H) mm |
| Outline(mm) | 165 × 104.07 × 14 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 1250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 7S3P WLED , 20K hours , No Driver |
| Mass | TBD |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/12.5/19/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD070JDW6-G10 7.0 inch 800*480 40pin LVDS screen Lcd Display panel | |
HSD070JDW6-G10 Product Description:
7''Hannstar HSD070JDW6-A00 LCD Display Panel 800(RGB)×480 1 Year warranty
All LCDs will be delivered after being tested.
The multifunctional bubble pad is used in the package to ensure the safe delivery of the LCD screen.
If you have any questions about the LCD screen, please contact us on eBay.
HSD070JDW6-G10 Payment:
Dear friend, thank you for visiting my listing!
If you buy several goods, I will send them by express delivery for free or make a discount (we can discuss this via private messages)!
Due to the general situation in the world, packages sent with economy shipping may be delayed by mail delivery services, so we recommend express delivery.
You may need to pay customs duties, taxes and assembly in your country (not included in the price of the goods or delivery.)
These charges are the buyers responsibility.
HSD070JDW6-G10 Shippment & Packing
HSD070JDW6-G10 Contact us:
The best way to contact with us is via email.
If you have any RFQ, please kindly contact us.We will be your good choice.
Thank you for coming, thank you! wish you a happy life!
HSD070JDW6-G10 FAQ:
Q: How to make payment of HSD070JDW6-G10 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of HSD070JDW6-G10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD070JDW6-G10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD070JDW6-G10 ?
A: Of course!sample order is welcome !
