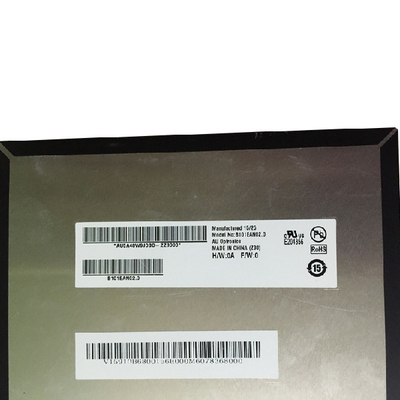

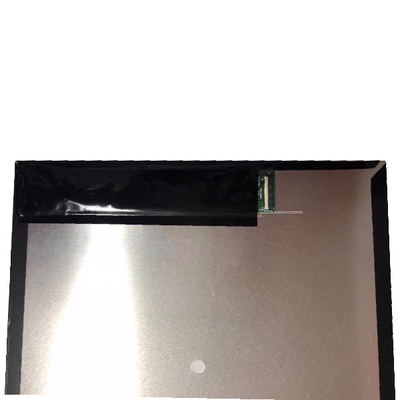

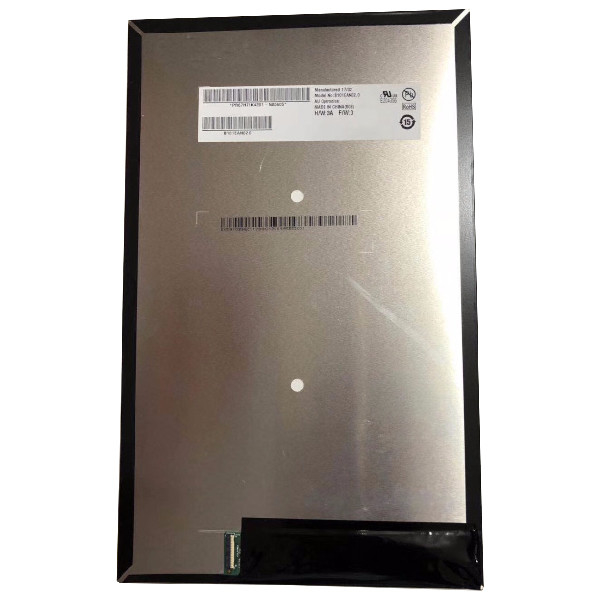

B101EAN02.0 10.1 inch screen 800*1280 MIPI lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EAN02.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 800(RGB)*1280 (WXGA) 150PPI | Active Area: | 135.36 * 216.576 (H*V) Mm |
| Outline(mm): | 141.36 * 228.23 * 4.23 (H*V*D) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Responding: | 30 (Typ.)(Tr+Td) MsDisplay | Application: | Pad & Tablet |
| High Light: | LCD Screen For Tablet,lcd display panel,tft screen display |
||
Product Description
B101EAN02.0 10.1 inch screen 800*1280 MIPI lcd display panel
B101EAN02.0 Product details :
| AUO LCD SCREEN B101EAN02.0 | |
| Panel Brand | AUO |
| Model Name | B101EAN02.0 |
| Screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×1280 (WXGA) 150PPI |
| Pixel | RGB triangle |
| Display size | 135.36 × 216.576 (H×V) mm |
| Outline Size | 141.36 × 228.23 × 4.23 (H×V×D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 1000: 1 (Typ.) (transmission) |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Responding | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 50% NTSC |
| Backlight type | WLED, 15K hours, without driver |
| Screen weight | 140g (Max.) |
| Refresh rate | 60Hz |
| Application | Pad & Tablet |
| Touch function | No touch |
| Signal system | MIPI (4 data lanes), connector, 39 pins |
| Supply voltage | 1.8/3.3V (Typ.)(VCC/VDDI) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| B101EAN02.0 10.1 inch screen 800*1280 MIPI lcd display panel | |
B101EAN02.0 We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
B101EAN02.0 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
B101EAN02.0 About shipping method:
Such as buyer choose Fedex, we may ship by the same level express like DHL, UPS or TNT.If you need specified logistics, please tell us in advance.
B101EAN02.0 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
B101EAN02.0 FAQ:
Q: Can you test the lcd panel B101EAN02.0 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order B101EAN02.0 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order B101EAN02.0 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd B101EAN02.0 ?
A: 90 days .
