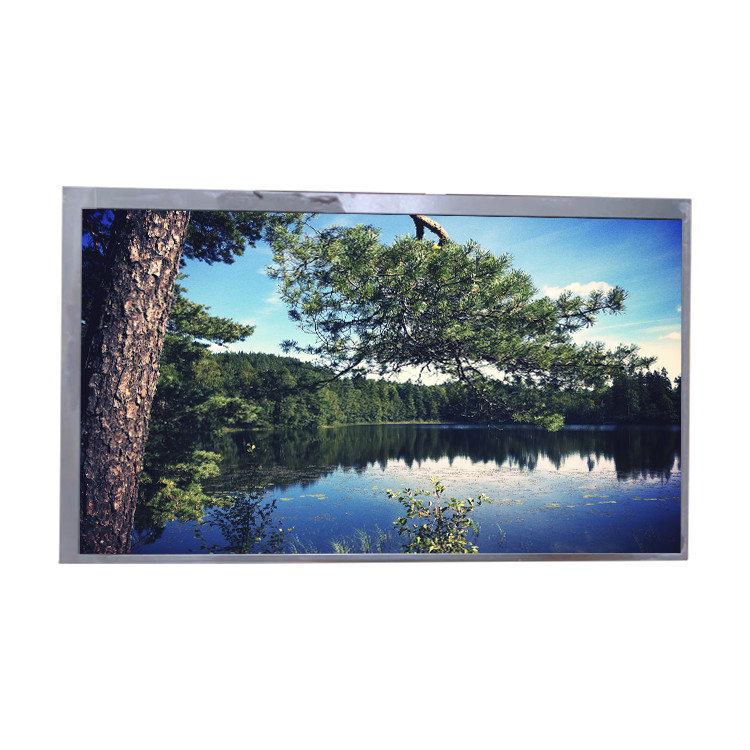

HannStar Lcd Monitors 9.0 Inch 1280x720 HSD090JHW1-D10 TFT Lcd Panel Screen Display Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD090JHW1-D10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD090JHW1-D10 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 163PPI | Active Area: | 198.912(W)×111.888(H) Mm |
| Outline Dim.: | 210.7(H)×124.15(V) Mm | Luminance: | 800 Cd/m² (Typ.) |
| Contrast Ratio: | 900:1 (Typ.) (TM) | Response Time: | 30 (Typ.)(Tr+Td) |
| Support Color: | 16.7M 70% NTSC | Designed For: | Automotive Display |
| High Light: | LCD Screen For Tablet,lcd display panel,tft screen display |
||
Product Description
HannStar Lcd Monitors 9.0 Inch 1280x720 HSD090JHW1-D10 TFT Lcd Panel Screen Display Replacement
HSD090JHW1-D10 Product details :
| HannStar LCD Screen HSD090JHW1-D10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD090JHW1-D10 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198.912(W)×111.888(H) mm |
| Outline Dim. | 210.7(H)×124.15(V) mm |
| Treatment | Antiglare |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HannStar Lcd Monitors 9.0 Inch 1280x720 HSD090JHW1-D10 TFT Lcd Panel Screen Display Replacement | |
HSD090JHW1-D10 Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
HSD090JHW1-D10 International Orders:
1.Buyer is responsible for all customs fees and import taxes.
2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.
3.And to send to Japan or South Korea via Fedex or DHL , we to declare actual price,the South Korea recipient needs to provide a customs clearance serial number, for example: "P987654321123" . Please provide us with the customs clearance serial number.
HSD090JHW1-D10 Shippment & Packing
HSD090JHW1-D10 Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
HSD090JHW1-D10 Exchange :
You can exchange a new one without any reasons in 7 days,counting from the shipping day.
We will Not be responsible for the cost incurred shipping products.
HSD090JHW1-D10 FAQ:
Q: Can you give me a discount if I need a large quantity of HSD090JHW1-D10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD090JHW1-D10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD090JHW1-D10 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
