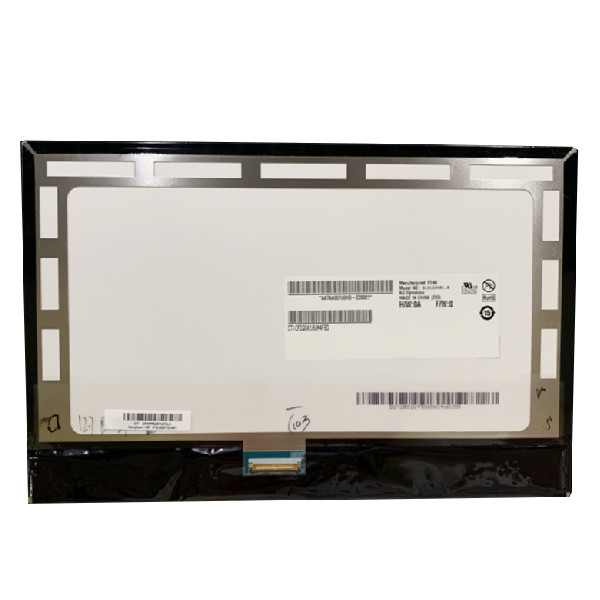

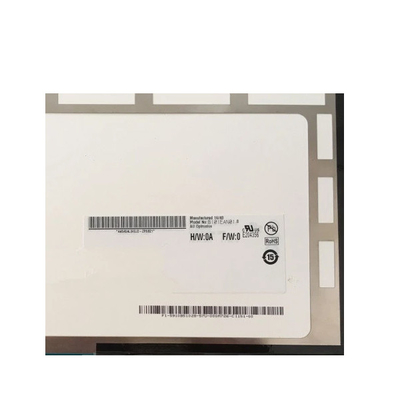

10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EAN01.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EAN01.8 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 149PPI | Active Area: | 216.96 × 135.6 (H×V) Mm |
| Outline Dim.: | 227.72(H)×147.8(V)×4.4(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Response Time: | 30 (Typ.)(Tr+Td) Ms |
| Number Of: | 16.7M, 50% NTSC | Designed For: | Pad & Tablet |
| High Light: | LCD Screen For Tablet,lcd display panel,tft screen display |
||
Product Description
10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display
B101EAN01.8 Product details :
| AUO LCD SCREEN B101EAN01.8 | |
| Panel Brand | AUO |
| Model Name | B101EAN01.8 |
| Screen size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 (WXGA) 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 216.96 × 135.6 (H×V) mm |
| Outline Size | 227.72(W)×147.8(H) ×4.4(D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Responding | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 50% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Screen weight | 140g (Max.) |
| Refresh rate | 60Hz |
| Application | Pad & Tablet |
| Touch function | No touch |
| Signal system | eDP (1 Lane), connector, 30 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| 10.1inch LCM 1280x800 250 800:1 16.7M WLED EDP B101EAN01.8 LCD Display | |
B101EAN01.8 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
B101EAN01.8 Attention:
We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.
Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.
Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.
B101EAN01.8 RETURN:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
B101EAN01.8 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
B101EAN01.8 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of B101EAN01.8 ?
A: Yes, Welcome !
Q: How long the warranty of B101EAN01.8 ?
A: 90 days .
Q: What happen if the B101EAN01.8 received can't work ?
A: Our B101EAN01.8 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
B101EAN01.8 Shippment & Packing:
