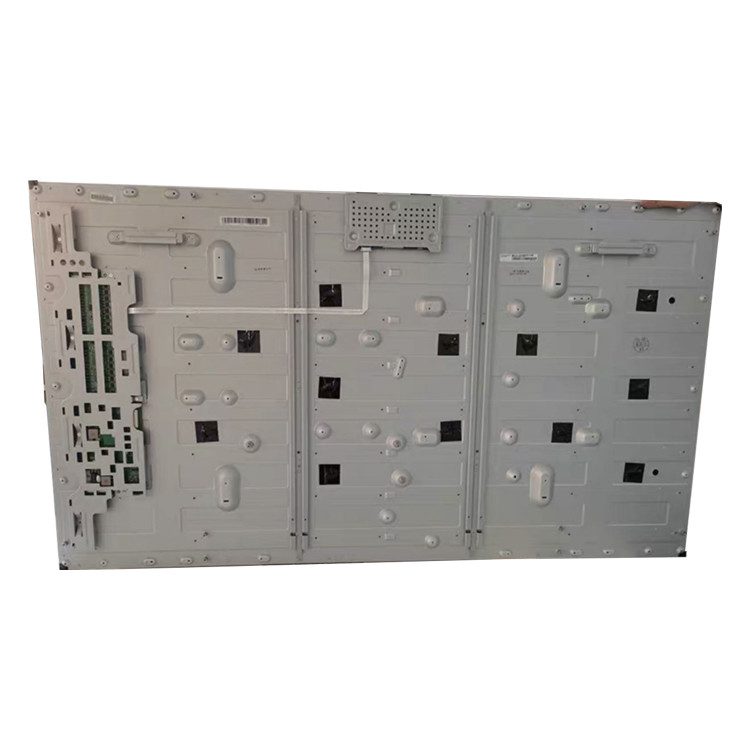

BOE DV460FHM-NV0 LCD Video Wall 46.0 Inch Full Hd Display Modules Lcd Narrow Bezel Splicing Screen Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV460FHM-NV0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | DV460FHM-NV0 | Diagonal Size: | 46" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 47PPI | Active Area: | 1018.08(W)×572.67(H) Mm |
| Bezel Opening: | 1018.38(W)×572.79(H) Mm | Outline(mm): | 1021.98 × 576.57 × 59 (H×V×D) |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Response: | 8 (Typ.)(G To G) Ms |
| Splicing Seam: | 3.9 Mm (active To Active Seam) | Used For: | Video Wall |
| High Light: | Video Wall Display,Video Wall Display,Video Wall LCD Panel |
||
Product Description
BOE DV460FHM-NV0 LCD Video Wall 46.0 Inch Full Hd Display Modules Lcd Narrow Bezel Splicing Screen Video Wall
DV460FHM-NV0 Product details :
| BOE LCD Screen DV460FHM-NV0 | |
|---|---|
| Panel Brand | BOE |
| Model P/N | DV460FHM-NV0 |
| Diagonal Size | 46" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1018.08(W)×572.67(H) mm |
| Bezel Opening | 1018.38(W)×572.79(H) mm |
| Outline(mm) | 1021.98 × 576.57 × 59 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Splicing Seam | 3.9 mm (active to active seam) |
| Used for | Video Wall |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE DV460FHM-NV0 LCD Video Wall 46.0 Inch Full Hd Display Modules Lcd Narrow Bezel Splicing Screen Video Wall | |
DV460FHM-NV0 About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
DV460FHM-NV0 Shippment & Packing
DV460FHM-NV0 Attention:
1.Please confirm your ADDRESS carefully once you make the order, and remember to write your FULL NAME on Alibaba which is important for success of receiving your package.
2.Your package will shipping out within 1-2 Working days after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping. 3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible!
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
DV460FHM-NV0 Warranty:
All products are guaranteed for half a year. Artificial damage is not covered by the warranty. All products have special warranty labels. Please do not damage the labels. Without warranty labels, no warranty can be provided.
DV460FHM-NV0 FAQ:
Q: How long will I receive my goods DV460FHM-NV0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of DV460FHM-NV0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of DV460FHM-NV0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of DV460FHM-NV0 ?
A: We accept T/T , Paypal , western union .
