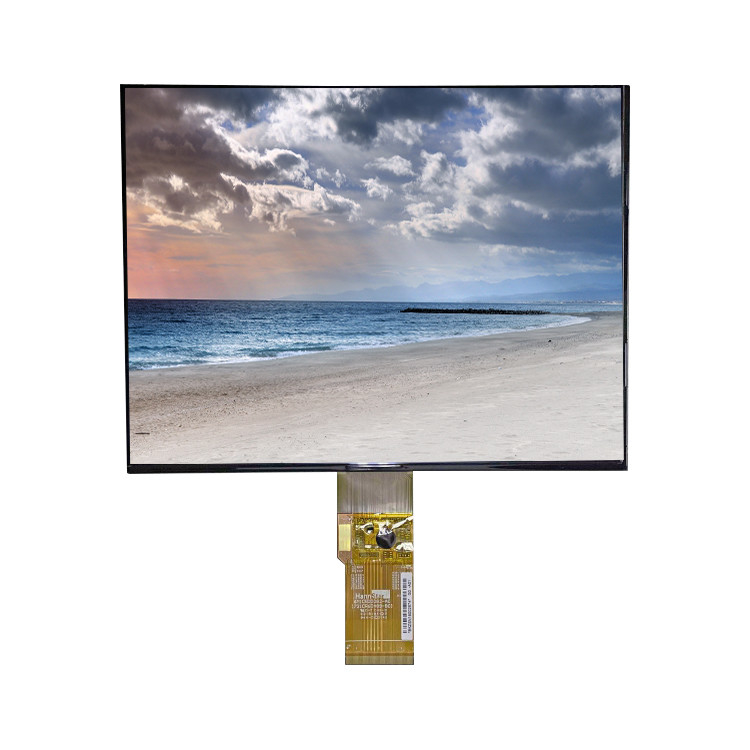

HSD104IXN1-A01-0299 10.4 Inch LCD Screen Display Brand New Original For HannStar
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD104IXN1-A01-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD104IXN1-A01-0299 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Outline Dim.: | 220.9(W)×168.75(H)×1.3(D) Mm | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Luminance: | 700 Cd/m² (Typ.) | Response Time: | 30 (Typ.)(Tr+Td) |
| Weight: | 100±10g | Designed For: | Industrial / Automotive Display |
| High Light: | 10.4 inch LCD Screen Display,LCD Screen Display for HannStar,HSD104IXN1-A01-0299 LCD Screen Display |
||
Product Description
HSD104IXN1-A01-0299 Brand New Original 10.4 inch LCD Screen Display for HannStar
HSD104IXN1-A01-0299 Product details :
| HannStar LCD Screen HSD104IXN1-A01-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD104IXN1-A01-0299 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Outline Dim. | 220.9(W)×168.75(H)×1.3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 4.68% (Typ.)(with Polarizer) |
| Support Color | 262K/16.2M 70% NTSC |
| Light Source | No B/L |
| Weight | 100±10g |
| Designed For | Industrial / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/12.1/25/10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| HSD104IXN1-A01-0299 Brand New Original 10.4 inch LCD Screen Display for HannStar | |
HSD104IXN1-A01-0299 Attention:
We suggest removing the old screen before ordering. Please provide your LCD model and laptop model before purchasing. We need to confirm again whether you have purchased the correct model.
Compatible models will be sent! Perhaps different from the models in the title, but they are 100% compatible! If you need the exact model, please contact us before purchasing.
Please confirm if your LCD screen can be separated from the front cover of your laptop. If it can be separated, you can purchase a LCD display screen. If separation is not possible, you will need to purchase a LCD screen assembly with a front cover. To avoid purchasing the wrong product, please confirm again if you need a single LCD screen or assembly.
HSD104IXN1-A01-0299 Shippment & Packing:
HSD104IXN1-A01-0299 Shipping Detail:
1: Please confirm your ADDRESS carefully once you make the order.We will send the products to you at once after the payment is received.
2: Items are shipped from China using airmail;reach most of the coun- tries within 15-30 business days.
3: Please contact us if you don't receive the products in 45 days. And please give us 3 working days for checking the undelivered package andthe reason. If it is our problem,we will refund the money to you.
HSD104IXN1-A01-0299 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
HSD104IXN1-A01-0299 FAQ:
Q: How can I trace my order of HSD104IXN1-A01-0299 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods HSD104IXN1-A01-0299 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD104IXN1-A01-0299 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of HSD104IXN1-A01-0299 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
