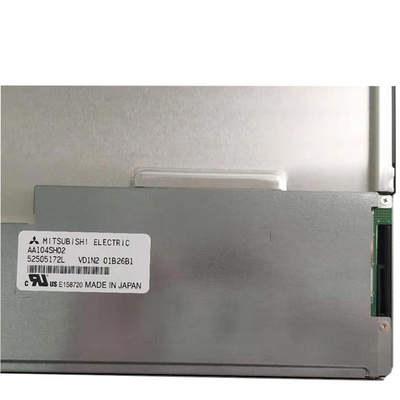

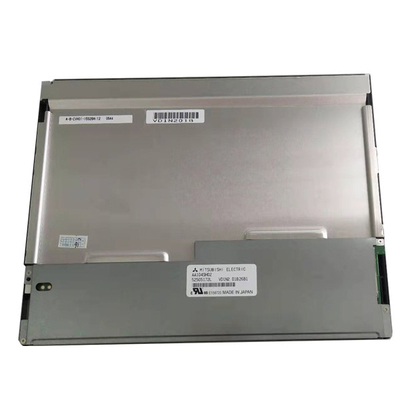

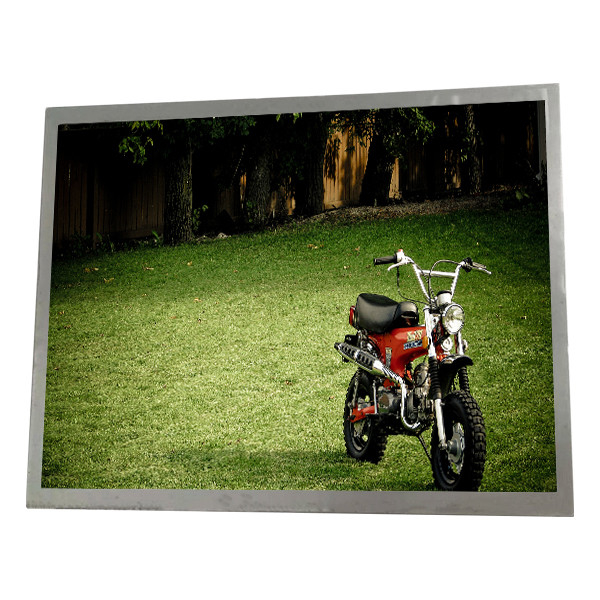

Mitsubishi LVDS AA104SH02 Screen 800*600 Panel 10.4 Inch Tft Lcd Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA104SH02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA104SH02 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 230(W)×180.2(H)×11(D) Mm |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Mass: | 520g (Typ.) | Used For: | Industrial |
| Highlight: | Mitsubishi LVDS AA104SH02 Screen,Mitsubishi LVDS Screen 800*600 Panel,Tft Lcd Screen 10.4Inch |
||
Product Description
Mitsubishi LVDS AA104SH02 screen 800*600 panel lcd 10.4 inch tft lcd screen
AA104SH02 Product details :
| Mitsubishi LCD SCREEN AA104SH02 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA104SH02 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 96PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 230 × 180.2 × 11 (H×V×D) |
| Bezel Area(mm) | 215.4 × 161.8 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 520g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Mitsubishi LVDS AA104SH02 screen 800*600 panel lcd 10.4 inch tft lcd screen | |
AA104SH02 Purchase instructions:
Ⅰ All products are guaranteed to be genuine
Ⅱ All products are tested and delivered
Ⅲ Different models of the same link can be used in general
Ⅳ If you need help, please leave a message to the owner
AA104SH02 Shippment & Packing:
AA104SH02 Shipment:
1. We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 2 business days after we received a verified payment.
3. SERVICE TRANSIT TIME is provided by the carier and excludes weekends and holidays. Transit times may
vary,parnticularly during the holiday season, such as Christmas season and weeks before Chinese New Year Holiday, most warehouses will be full that it will cause delayed to deliver.
4.If you have not received your items within 30 days after payment for postage delivery (like china post),please let us know.We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!
5. We support most shipping ways: DHL, UPS,FEDEX,EMS, HK Post, SG Post, China Post etc.
AA104SH02 After service:
We can accept a return of 5 days without reason, and promise a 90 day warranty forthis item is one ofand the shipping cost of the return must be offered by the buyer.
Such as man-made factors, natural disasters have not caused any harm to our warranty. For example: improper installed, nick, bad tube touch, energy, etc. store sale of posted merchandise fragile warranty labels, such as warranty labels in the warranty period to be torn. Disconnection or loss will be deemed to be giving the warranty, and we will not accept any liability. Attention, please!
AA104SH02 FAQ:
Q: How to make payment of AA104SH02?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of AA104SH02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of AA104SH02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of AA104SH02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
