AA090MH01 9.0 Inch 800*480 Lcd Display Panel Screen Mitsubishi For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA090MH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA090MH01 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 103PPI | Active Area: | 196.8(W)×118.08(H) Mm |
| Bezel Opening: | 199.4(W)×120.7(H) Mm | Outline Dim.: | 219(W)×136.2(H)×10(D) Mm |
| Luminance: | 800 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 350g (Typ.) | Designed For: | Industrial |
| High Light: | Lcd Display Panel Screen Mitsubishi,Lcd Display Panel Screen AA090MH01,800*480 Lcd Display Panel Screen |
||
Product Description

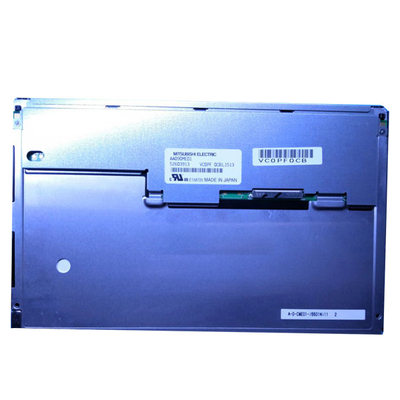

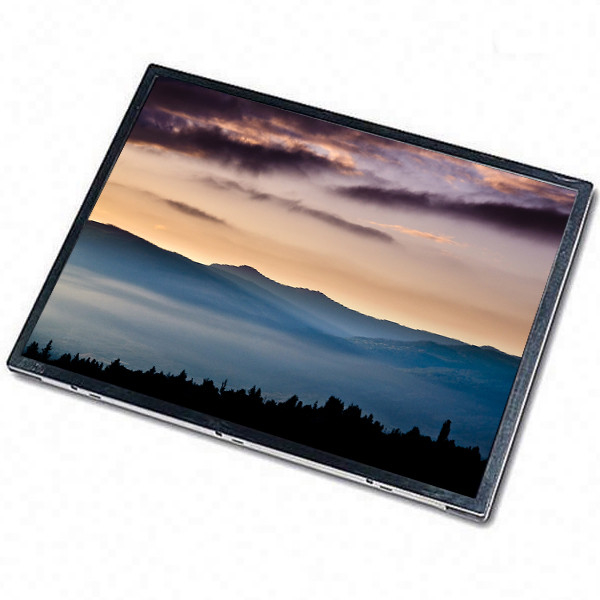

Mitsubishi AA090MH01 9.0 inch 800*480 lcd display panel Screen for Industrial
AA090MH01 Product details :
| Mitsubishi LCD SCREEN AA090MH01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA090MH01 |
| Screen Size | 9.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 103PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 196.8 × 118.08 (H×V) |
| Outline(mm) | 219 × 136.2 × 10 (H×V×D) |
| Bezel Area(mm) | 199.4 × 120.7 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 7S2P WLED , 100K hours , With LED Driver |
| Mass | 350g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Mitsubishi AA090MH01 9.0 inch 800*480 lcd display panel Screen for Industrial | |
AA090MH01 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
AA090MH01 Shippment & Packing:
AA090MH01 Shipping and Delivery Time:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-Packet,HK Post,SG Post,China Post etc.
2.We guarantee to ship out within 2 working days after payment confrmation(except Holiday).
3.We only ship to confirmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after paymentplease contact us.
We will track the shipment and get back to you as soon as possible.
AA090MH01 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
AA090MH01 FAQ:
Q: How can I trace my order of AA090MH01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of AA090MH01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of AA090MH01 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
