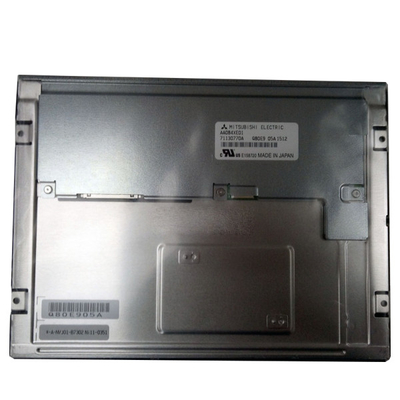

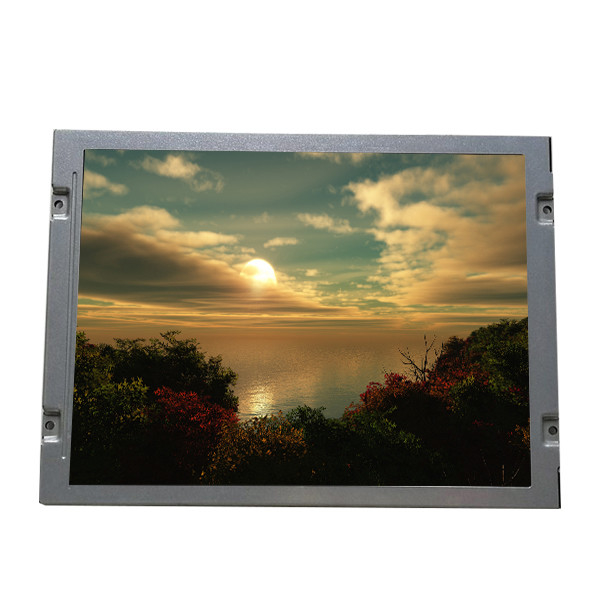

8.4 Inch LCD Module Display AA084XE01 1024*768 Suitable For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA084XE01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA084XE01 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 152PPI | Active Area: | 170.496(W)×127.872(H) Mm |
| Bezel Opening: | 174.9(W)×132.2(H) Mm | Outline Dim.: | 199.5(H)×149(V)×10.2(D) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Weight: | 340g (Typ.) |
| Designed For: | Industrial | ||
| Highlight: | 8.4inch LCD Module Display,AA084XE01 LCD Module Display,LCD Module Display 1024*768 |
||
Product Description
8.4 inch LCD Module AA084XE01 1024*768 Suitable for industrial display
AA084XE01 Product details :
| Mitsubishi LCD SCREEN AA084XE01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA084XE01 |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 152PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.496 × 127.872 (H×V) |
| Outline(mm) | 199.5 × 149 × 10.2 (H×V×D) |
| Bezel Area(mm) | 174.9 × 132.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 340g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 8.4 inch LCD Module AA084XE01 1024*768 Suitable for industrial display | |
AA084XE01 We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision Customer Service Policy
We are more than happy to answer any questions that you have, please contact with
AA084XE01 Shippment & Packing:
AA084XE01 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
AA084XE01 Regarding shipping:
We will conduct strict testing on them before shipment.
We will make the payment within three working days after you make the payment. We are currently sending an email address. If you want to change the email address, please call me in advance. For delivery time, it usually takes 7-30 days, and the delivery time may vary from country to country.
AA084XE01 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
AA084XE01 FAQ:
Q: If I order AA084XE01 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Do you accept sample orders for AA084XE01 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of Mitsubishi AA084XE01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: What happen if the AA084XE01 receive can't work ?
A: The Mitsubishi AA084XE01 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
