8.4 Inch 1024*768 Lcd Screen Panel Module Display AA084XD01 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA084XB11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA084XB11 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 152PPI | Active Area: | 170.496(W)×127.872(H) Mm |
| Bezel Opening: | 174.9(W)×132.2(H) Mm | Outline Size: | 199.5(W)×149(H) Mm |
| Brightness: | 1000 Cd/m² (Typ.) | Panel Weight: | 370g (Typ.) |
| Application: | Industrial / Outdoor High Brightness | ||
| High Light: | lcd screen panel Module Display AA084XD01,8.4inch lcd screen panel Module Display,1024*768 lcd screen panel Module Display |
||
Product Description

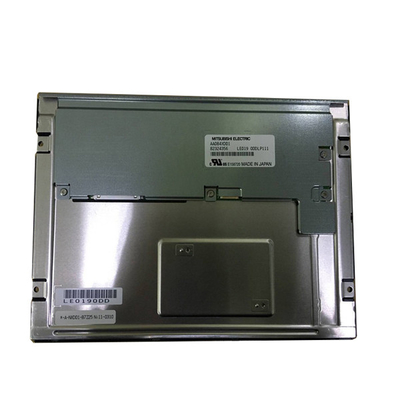

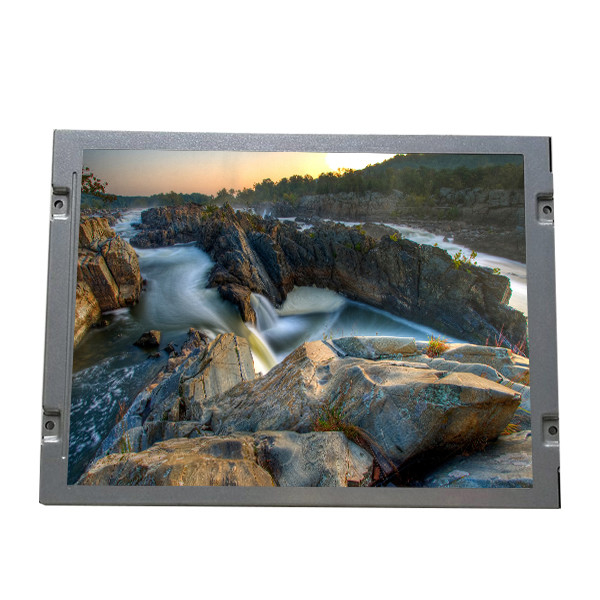

8.4 inch 1024*768 lcd screen display lcd panel LCD Module Display AA084XD01 for Industrial
AA084XD01 Product details :
| Mitsubishi LCD SCREEN AA084XD01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA084XD01 |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 152PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.496 × 127.872 (H×V) |
| Outline(mm) | 199.5 × 149 × 10.2 (H×V×D) |
| Bezel Area(mm) | 174.9 × 132.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 340g (Typ.) |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 8.4 inch 1024*768 lcd screen display lcd panel LCD Module Display AA084XD01 for Industrial | |
AA084XD01 Purchase instructions:
Ⅰ All products are guaranteed to be genuine
Ⅱ All products are tested and delivered
Ⅲ Different models of the same link can be used in general
Ⅳ If you need help, please leave a message to the owner
AA084XD01 Shippment & Packing:
AA084XD01 Regarding tariffs and receipts:
*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).
*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.
AA084XD01 Contact us:
1: Our company is a professional and reliable seller. We promise a safe and pleasant shopping experience. 60 days money back guarantee.
2: Our company can provide you with 1.5 inch to 88.0 inch LCD screen (flat TFT) and touch screen (digitizer), usually used for PDA, GPS, MP3, MP4, MID, mobile phones, car DVD players, notebooks, UMPC , Car DVD radio, digital camera and industrial products.
3: We will try our best to reply to your message as soon as possible. However, due to the large number of emails received each day, and the different time zones and holidays, we may not be able to reply to your message immediately. So please allow us to respond within 24 hours. It is my pleasure to process your purchase from us.
4: We have a large number of products that are not released in the store in time. If you do not find the product you need, please send the picture and model to our customer service, our customer service will find you what you need in the shortest time The product.
AA084XD01 FAQ:
Q: Do you accept sample orders of AA084XD01 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of AA084XD01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of AA084XD01 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of AA084XD01 ?
A: we will give you tracking number then you can trace your order from website.
