1024*768 LCD Display Screen Panel AA084XB01 For Industrial 8.4 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA084XB01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA084XB01 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 152PPI | Active Area: | 170.496(W)×127.872(H) Mm |
| Outline Dim.: | 205(W)×152.4(H) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Weight: | 370g (Typ.) |
| Designed For: | Industrial | ||
| Highlight: | 1024*768 LCD Display Screen Panel,AA084XB01 LCD Display Screen Panel,8.4" LCD Display Screen Panel |
||
Product Description

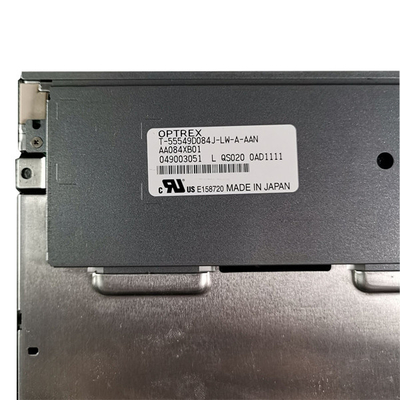

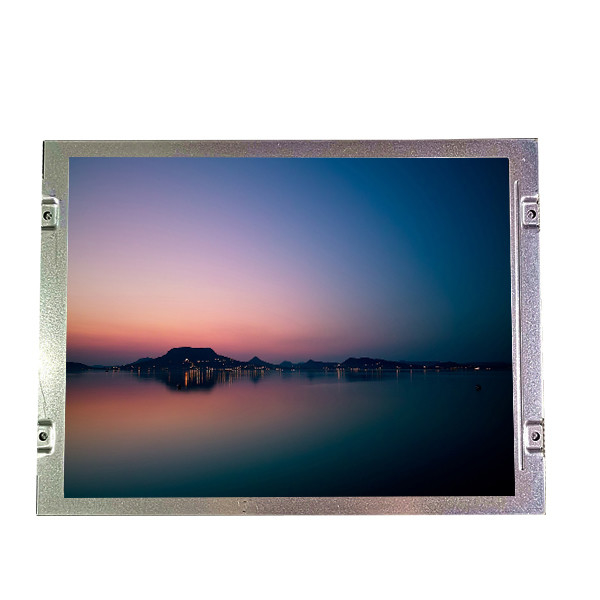

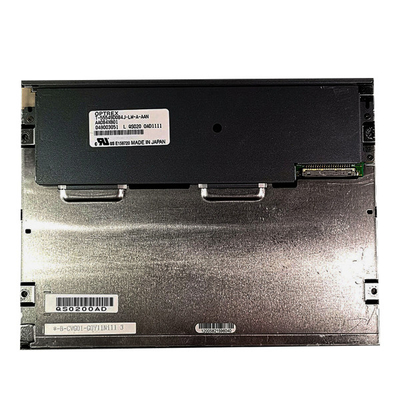

8.4 inch 1024*768 LCD Display Screen Panel AA084XB01 for Industrial
AA084XB01 Product details :
| Mitsubishi LCD SCREEN AA084XB01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA084XB01 |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 152PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.496 × 127.872 (H×V) |
| Outline(mm) | 199.5 × 149 (H×V×D) |
| Bezel Area(mm) | 174.9 × 132.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 60K hours , No Driver |
| Mass | 370g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 8.4 inch 1024*768 LCD Display Screen Panel AA084XB01 for Industrial | |
