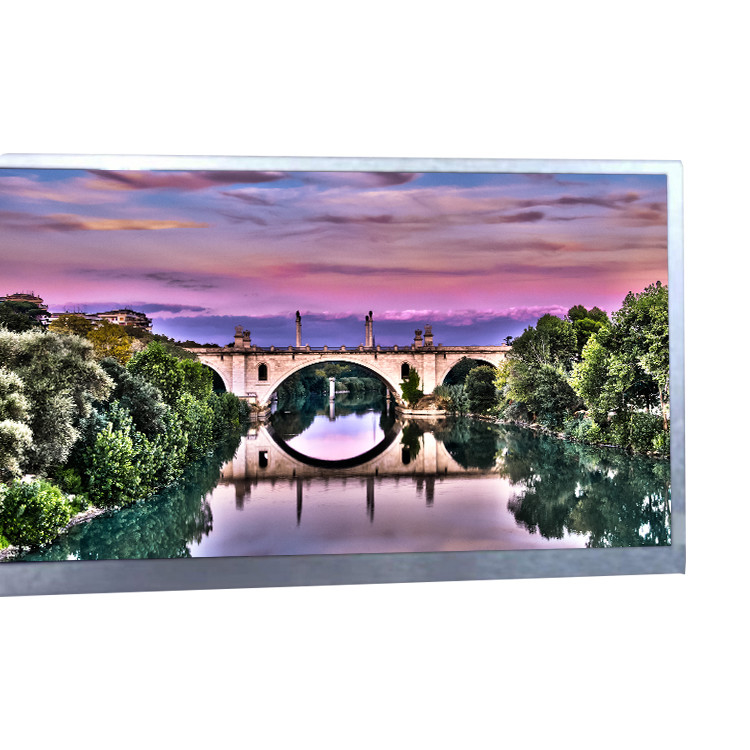

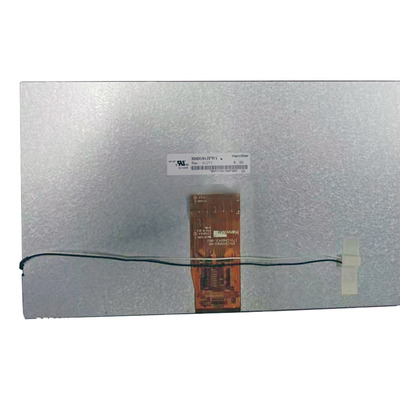

A - Si TFT LCD Panel For HannStar Module HSD101JFW1-C11 10.1 Inch 117PPI

Brand Name:	HannStar
Model Number:	HSD101JFW1-C11
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model P/N:

HSD101JFW1-C11

Diagonal Size:

10.1"

Resolution:

1024(RGB)×600, WSVGA 117PPI

Active Area:

222.72(W)×125.28(H) Mm

Bezel Opening:

226(W)×128.5(H) Mm

Outline(mm):

235 × 143 × 6.3 (H×V×D)

Luminance:

500 Cd/m² (Typ.)

Contrast Ratio:

800 : 1 (Typ.) (TM)

Mass:

265/275g (Typ./Max.)

Used For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Highlight:

A-Si TFT LCD Panel For HannStar

10.1Inch LCD Screen Display Panel

117 PPI LCD Screen Display Panel

Product Description

New and original lcd module HSD101JFW1-C11 10.1 inch a-Si TFT-LCD Panel for HannStar

HSD101JFW1-C11 Product details :

HannStar LCD Screen HSD101JFW1-C11
Panel Brand	HannStar
Model P/N	HSD101JFW1-C11
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	226(W)×128.5(H) mm
Outline(mm)	235 × 143 × 6.3 (H×V×D)
Treatment	Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS Pro, Normally Black, Transflective
Color Depth	16.2M 45% NTSC
Backlight	6S7P WLED , 20K hours , No Driver
Mass	265/275g (Typ./Max.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) , 60 pins FPC
Voltage Supply	3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
New and original lcd module HSD101JFW1-C11 10.1 inch a-Si TFT-LCD Panel for HannStar

HSD101JFW1-C11 Product Description:

1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.

2: Full Tested 100% Working By Real equipment before Shipping

3: Not supply the disassembly installation instructions and Tools

4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm

5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)

HSD101JFW1-C11 Shippment & Packing:

A - Si TFT LCD Panel For HannStar Module HSD101JFW1-C11 10.1 Inch 117PPI 0

HSD101JFW1-C11 About transportation:

*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.

*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region.

Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)

HSD101JFW1-C11 Regarding tariffs and receipts:

*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).

*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.

HSD101JFW1-C11 FAQ:

Q: Do you accept sample orders of HSD101JFW1-C11 ?

A: Of course!sample order is welcome !

Q: How can I trace my order of HSD101JFW1-C11 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can You declare my order of HSD101JFW1-C11 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of HSD101JFW1-C11 ?

A: Of course!If you make a large order, we will give you a discount.
