Original 8.4 Inch TFT Replacement LCD Screen Display For Mitsubishi AA084VC03
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA084VC03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA084VC03 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 95PPI | Active Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.9(W)×132.2(H) Mm | Outline Size: | 199.5(W)×149(H) ×12(D) Mm |
| Brightness: | 450 Cd/m² (Typ.) | Contrast Ratio: | 450:1 (Typ.) (TM) |
| Panel Weight: | 400g (Typ.) | Application: | Industrial |
| Highlight: | TFT Replacement LCD Screen Display,AA084VC03 TFT LCD Screen Display,8.4 inch TFT LCD Screen Display |
||
Product Description

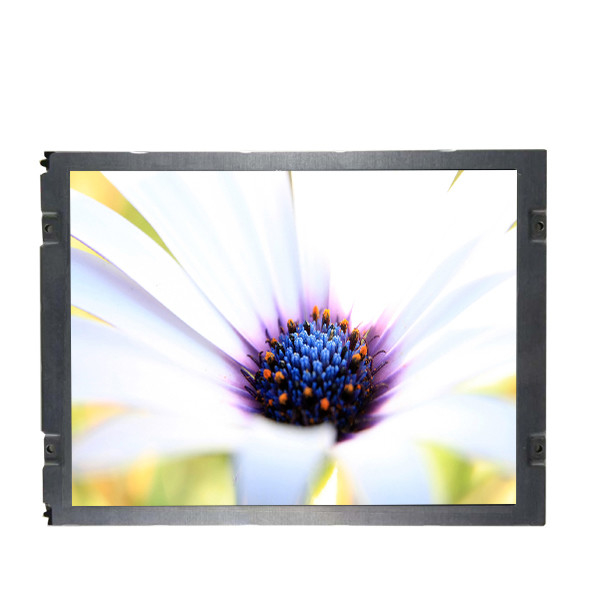

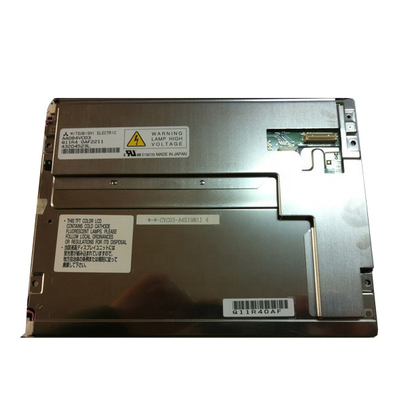

AA084VC03 Original 8.4 inch TFT Replacement LCD Screen Display for Mitsubishi
AA084VC03 Product details :

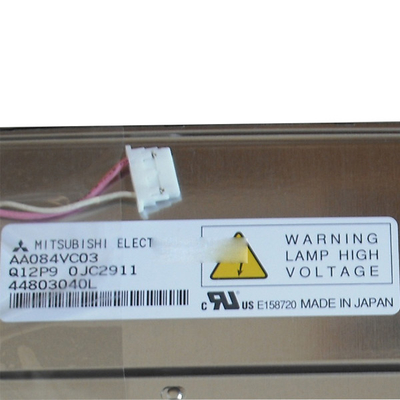

| Mitsubishi LCD SCREEN AA084VC03 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA084VC03 |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 95PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.88 × 128.16 (H×V) |
| Outline(mm) | 199.5 × 149 × 12 (H×V×D) |
| Bezel Area(mm) | 174.9 × 132.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) |
| Response | 8/27 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 39% NTSC |
| Backlight | 2 pcs CCFL , 40K hours , No Driver |
| Mass | 400g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 3.3V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 65 °C |
| AA084VC03 Original 8.4 inch TFT Replacement LCD Screen Display for Mitsubishi | |
AA084VC03 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
AA084VC03 Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
AA084VC03 Shippment & Packing
AA084VC03 Warranty& Return:
1. All products are under 6 month warranty. (Excluding the Accessories)
2. lf you wish to exchange defectives or incorrectly shipped items. Please do as this :
Step1)E-mail us within 7workind days or chat with us by Trade Manager
Step2)Send photos to us about the problems of the items or something else details
Step3)Return the items to us with tracking number .then we will delivery the right item to you immediately.
AA084VC03 FAQ:
Q: Can I pay my goods AA084VC03 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AA084VC03 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AA084VC03 ?
A: 90 days warranty .
Q: Can You declare my order of lcd panel Mitsubishi AA084VC03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
