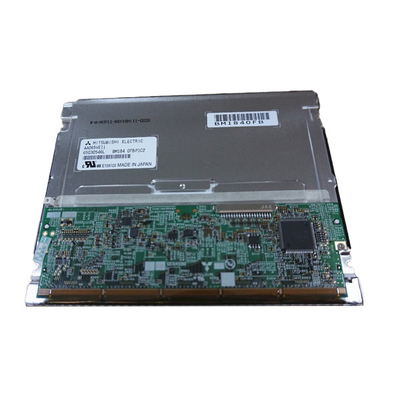

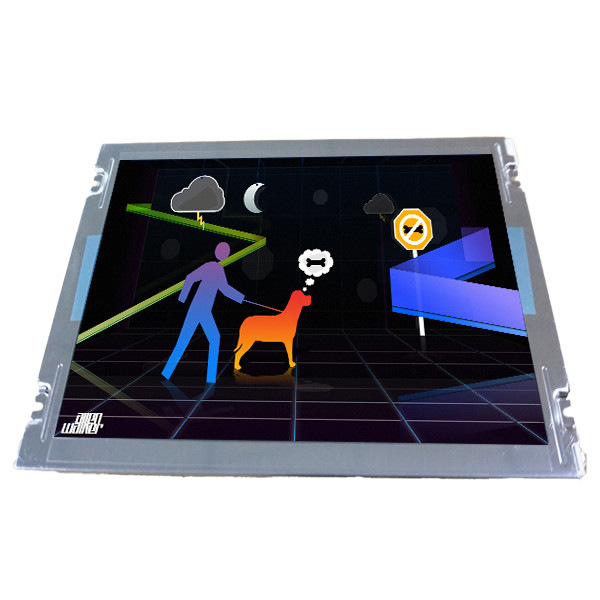

AA065VE11 Lcd Display Screen Panel 6.5 Inch 640*480 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA065VE11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA065VE11 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 122PPI | Active Area: | 132.48(W)×99.36(H) Mm |
| Bezel Opening: | 135.5(W)×102.4(H) Mm | Outline Dim.: | 154(W)×121(H) Mm |
| Luminance: | 1300 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Weight: | 185g (Typ.) | Designed For: | Industrial / Outdoor High Brightness |
| High Light: | AA065VE11 lcd display screen panel,6.5inch lcd display screen panel,lcd display screen panel 640*480 |
||
Product Description
AA065VE11 6.5 inch 640*480 lcd display screen panel for Industrial
AA065VE11 Product details :
| Mitsubishi LCD SCREEN AA065VE11 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA065VE11 |
| Screen Size | 6.5 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 122PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 132.48 × 99.36 (H×V) |
| Outline(mm) | 154 × 121 (H×V×D) |
| Bezel Area(mm) | 135.5 × 102.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1300 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 6/19 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 185g (Typ.) |
| Used for | Industrial / Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA065VE11 6.5 inch 640*480 lcd display screen panel for Industrial | |
AA065VE11 Payment:
1:We receive Alibaba payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
AA065VE11 Shippment & Packing
AA065VE11 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within7 working days after receiving the order.(In special cases, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.Or arrange for alternative products.
5.Please confirm it with us before buying if you need 100% new.
AA065VE11 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
AA065VE11 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of AA065VE11 ?
A: Yes, Welcome !
Q: How long the warranty of AA065VE11 ?
A: 90 days .
Q: What happen if the AA065VE11 received can't work ?
A: Our AA065VE11 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
