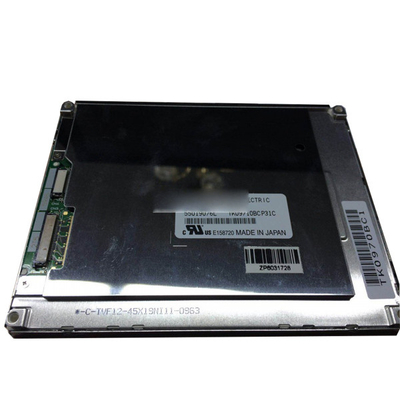

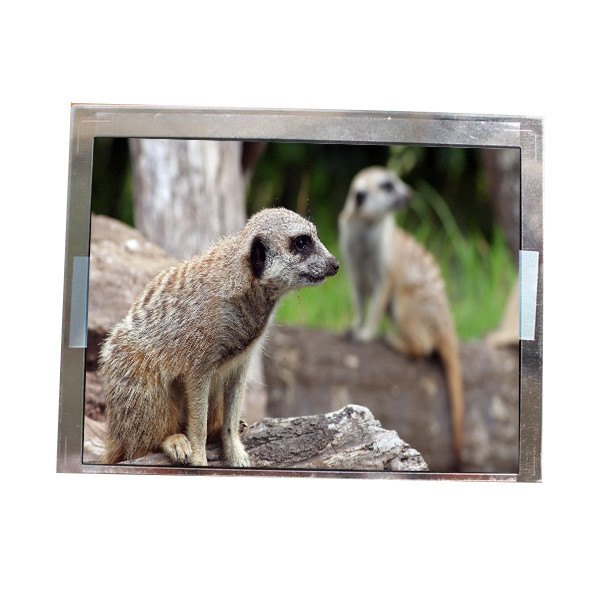

5.7 Inch Lcd Panel Display Module Resolution 640*480 AA057VF12 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA057VF12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA057VF12 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 141PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.2(W)×90.4(H) Mm | Outline Dim.: | 135(H)×104.6(V) ×9.35(D) Mm |
| Interface Type: | CMOS (1 Ch, 6-bit) , 33 Pins Connector | Response Time: | 5/20 (Typ.)(Tr/Td) |
| Weight: | 165g (Typ.) | Designed For: | Industrial / Outdoor High Brightness |
| High Light: | Lcd Panel Display Module Resolution 640*480,AA057VF12 Lcd Panel Display Module,5.7inch Lcd Panel Display Module |
||
Product Description
5.7 inch Lcd Panel Display Module Resolution 640*480 AA057VF12 for Industrial
AA057VF12 Product details :
| Mitsubishi LCD SCREEN AA057VF12 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA057VF12 |
| Screen Size | 5.7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 135 × 104.6 × 9.35 (H×V×D) |
| Bezel Area(mm) | 119.2 × 90.4 (H×V) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 165g (Typ.) |
| Used for | Industrial / Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 33 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 5.7 inch Lcd Panel Display Module Resolution 640*480 AA057VF12 for Industrial | |
AA057VF12 Addressee:
To avoid placing the wrong order or buying the wrong product, the following are the things you need to read before ordering,
Please check your machine model in the compatibility list, or indicate whether it is a wide screen or a standard screen.
Please check the size and resolution of the LCD screen.
Please check the data connector (14 pin, 20 pin, 30 pin (S M L), 40 pin (S M L), 50 pin 60 pin) and position
Please check the physical resolution pixels of the LCD screen.
AA057VF12 Shippment & Packing:
AA057VF12 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA057VF12 Warm Reminder:
The Duty or custom fees is depend on BUYER country, Not Seller!
When you place an order , Please provide a valid telephone or mobile number, Because we found that when the parcel arrive customer customs , the DHL/FEDEX/EMS feedback us that they can't get through buyer's tel/mobile .
When the parcel arrive the buyer customs , there is only several days to handle Customs clearance.
If happen that the buyer can not handle the Customs clearance and pay the customs fee in time , Our seller will not refund you .
To avoid happen , please offer valid Tel/Mobile Number , and also the e-mail , it is convenient for us to contact you by e-mail when the parcel arrive your local customs .
AA057VF12 FAQ:
Q: How can I trace my order of AA057VF12 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods AA057VF12 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of AA057VF12 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of AA057VF12 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
