5.0 Inch AA050MH01 LCD Display Screen Panel 800*480 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050MH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA050MH01 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.0(W)×66.8(H) Mm | Outline Dim.: | 118.5(W)×77.8(H)×5.7(D) Mm |
| Treatment: | Clear, Hard Coating (2H) | Response Time: | 12/12 (Typ.)(Tr/Td) |
| Weight: | 76.0g | Designed For: | Industrial |
| High Light: | AA050MH01 LCD Display Screen Panel,5.0inch LCD Display Screen Panel,LCD Display Screen Panel 800*480 |
||
Product Description

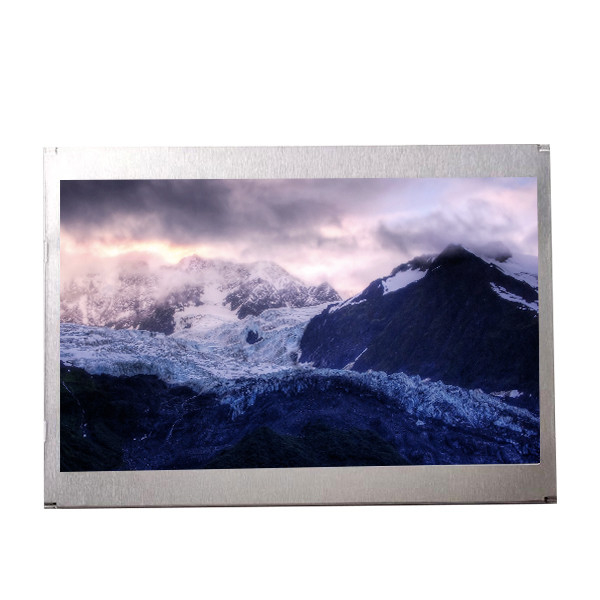

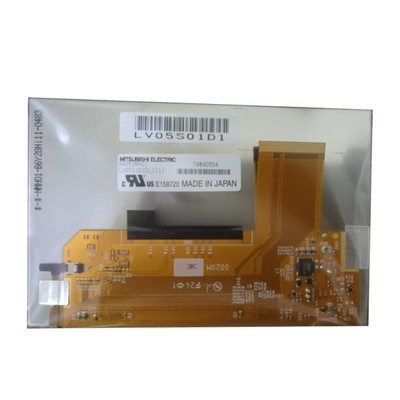

5.0 inch AA050MH01 LCD Display 800*480 LCD Screen Panel for Industrial
AA050MH01 Product details :
| Mitsubishi LCD SCREEN AA050MH01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA050MH01 |
| Screen Size | 5.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 108 × 64.8 (H×V) |
| Outline(mm) | 118.5 × 77.8 × 5.7 (H×V×D) |
| Bezel Area(mm) | 110.0 × 66.8 (H×V) |
| Treatment | Clear, Hard coating (2H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 2 strings WLED , No Driver |
| Mass | 76.0g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 8-bit) , 45 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 5.0 inch AA050MH01 LCD Display 800*480 LCD Screen Panel for Industrial | |
AA050MH01 Quality:
We have rich experience in maintaining various LCD screens in China. All replacement screens will be carefully inspected and tested by our experienced quality control team before shipment. 100% works well.
AA050MH01 Shippment & Packing:
AA050MH01 Packing:
the parcel will be packed well with bubble bag + strong box.Do not worry.
AA050MH01 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
AA050MH01 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
AA050MH01 FAQ:
Q: Do you accept sample orders for AA050MH01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of AA050MH01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for AA050MH01 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of AA050MH01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
