AA050MG03 LCD Display Screen Panel Original 5 Inch For Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050MG03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | AA050MG03 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.0(W)×66.8(H) Mm | Outline Size: | 118.5(W)×84.7(H) ×5.2(D) Mm |
| Brightness: | 900 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Panel Weight: | 80.0g (Typ.) | Application: | Industrial |
| High Light: | AA050MG03 LCD Display Screen Panel,5inch LCD Display Screen Panel,188 PPI LCD Display Screen Panel |
||
Product Description

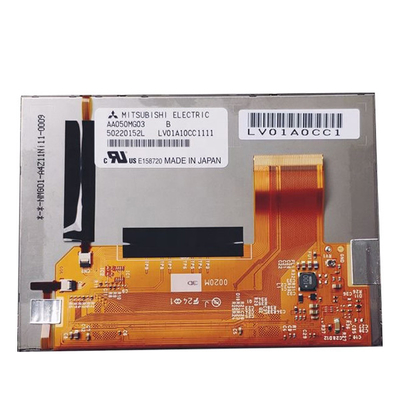

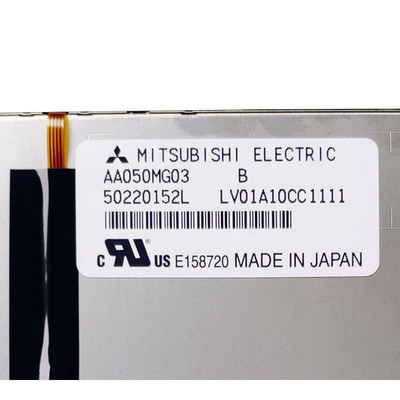

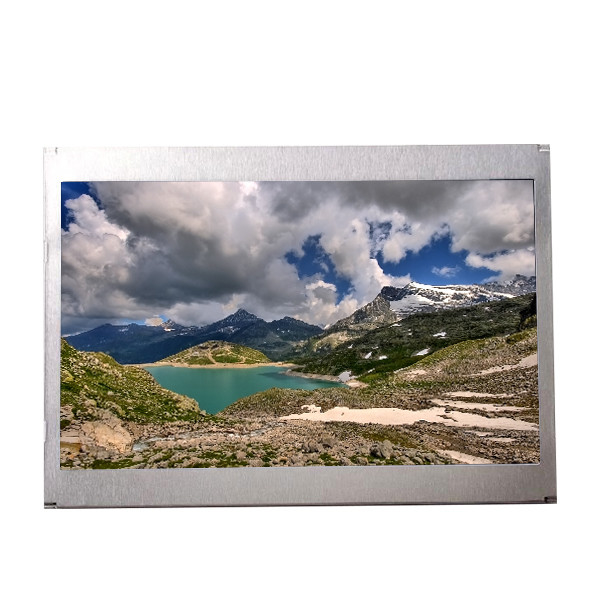

Original 5 inch AA050MG03 LCD Display Screen Panel for Industrial Equipment
AA050MG03 Product details :
| Mitsubishi LCD SCREEN AA050MG03 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA050MG03 |
| Screen Size | 5.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 108 × 64.8 (H×V) |
| Outline(mm) | 118.5 × 84.7 × 5.2 (H×V×D) |
| Bezel Area(mm) | 110.0 × 66.8 (H×V) |
| Treatment | Clear, Hard coating (2H) |
| Luminance | 900 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 4 strings WLED , No Driver |
| Mass | 80.0g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 8-bit) , 45 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Original 5 inch AA050MG03 LCD Display Screen Panel for Industrial Equipment | |
