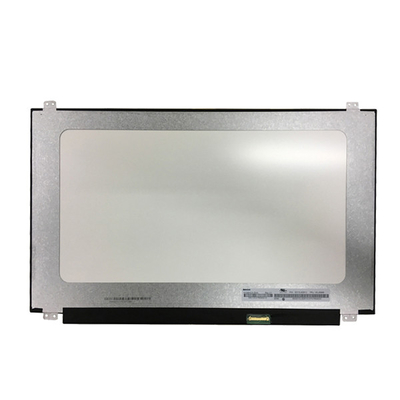

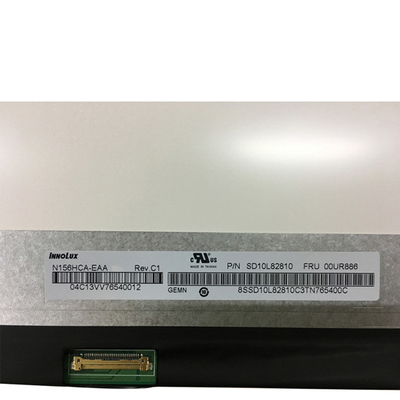

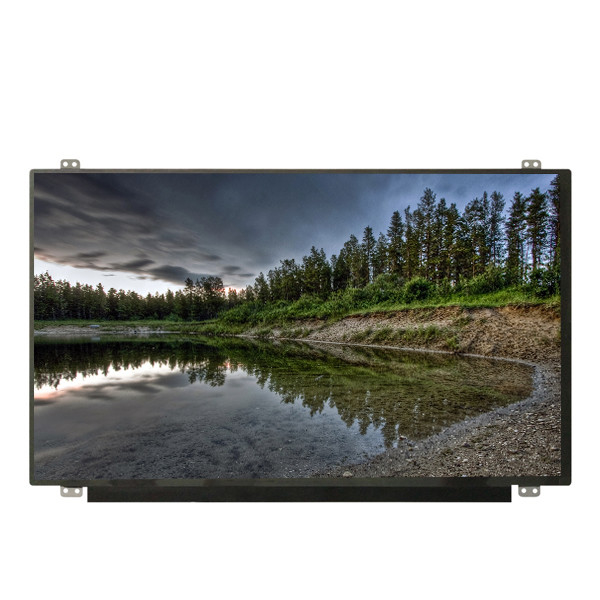

15.6 Inch Laptop LCD Display Screen 1920RGB*1080 Original For N156HCA-EAA
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N156HCA-EAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N156HCA-EAA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.76(W)×223.78(H)×3.2(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) (TM) | Response Time: | 14/11 (Typ.)(Tr/Td) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| Highlight: | 15.6Inch Laptop LCD Display Screen,1920RGB*1080 Laptop LCD Display Screen,N156HCA-EAA Laptop LCD Display Screen |
||
Product Description
15.6 inch 1920(RGB)*1080 Original laptop LCD display screen For N156HCA-EAA
N156HCA-EAA Product details :
| Innolux LCD SCREEN N156HCA-EAA | |
|---|---|
| Manufacturer | Innolux |
| Model Name | N156HCA-EAA |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.76 × 223.78 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 15.6 inch 1920(RGB)*1080 Original laptop LCD display screen For N156HCA-EAA | |
N156HCA-EAA NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : N156HCA-EAA
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
N156HCA-EAA Shippment & Packing:
N156HCA-EAA Shipping time:
We try our best to ship out same day for payment cleared before 17.00 PM (Beijing Time) , otherwise we will ship on next working day.Order placed on weekend or holiday will be shipped on Monday or next working day.when we shipped, you can see the tracking number in your order.
N156HCA-EAA After service:
We can accept a return of 5 days without reason, and promise a 90 day warranty forthis item is one ofand the shipping cost of the return must be offered by the buyer.
Such as man-made factors, natural disasters have not caused any harm to our warranty. For example: improper installed, nick, bad tube touch, energy, etc. store sale of posted merchandise fragile warranty labels, such as warranty labels in the warranty period to be torn. Disconnection or loss will be deemed to be giving the warranty, and we will not accept any liability. Attention, please!
N156HCA-EAA FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order N156HCA-EAA ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value for my order N156HCA-EAA when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the lcd panel N156HCA-EAA I received can't work ?
A: Our lcd display N156HCA-EAA tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
