Tft Lcd Screen Module Display Panel 14.0 Inch 1920*1080 N140HCE-GN2
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140HCE-GN2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N140HCE-GN2 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline Dim.: | 315.1(H)×195.67(V) ×2.4(D) Mm | Luminance: | 340 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) (TM) | Response Time: | 14/11 (Typ.)(Tr/Td) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | Tft Lcd Screen Module Display Panel,N140HCE-GN2 Lcd Screen Display Panel,14.0Inch Lcd Screen Display Panel 1920*1080 |
||
Product Description

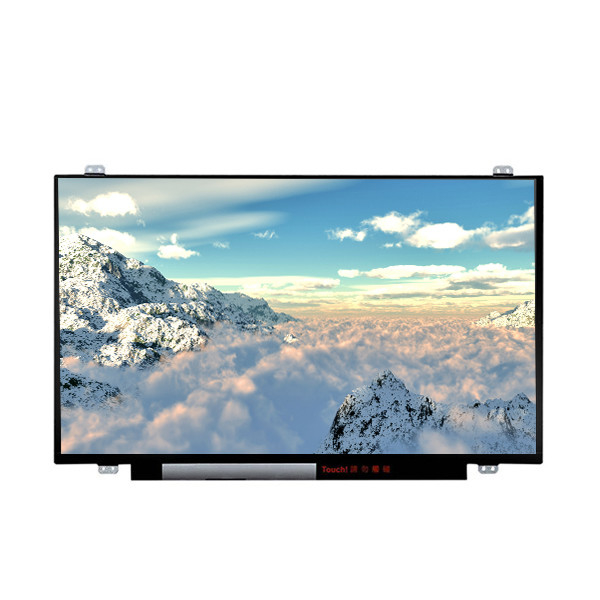

14.0 inch 1920*1080 N140HCE-GN2 tft lcd screen module tft lcd display tft lcd panel
N140HCE-GN2 Product details :
| Innolux LCD SCREEN N140HCE-GN2 | |
|---|---|
| Manufacturer | Innolux |
| Model Name | N140HCE-GN2 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 315.1 × 195.67 × 2.4 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 340 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 100% sRGB |
| Backlight | 4 strings WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 14.0 inch 1920*1080 N140HCE-GN2 tft lcd screen module tft lcd display tft lcd panel | |
N140HCE-GN2 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N140HCE-GN2 Shippment & Packing:
N140HCE-GN2 Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
N140HCE-GN2 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price. We are not responsible for all taxes and import duties Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
N140HCE-GN2 FAQ:
Q: Can I pay my order of N140HCE-GN2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of N140HCE-GN2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of N140HCE-GN2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
