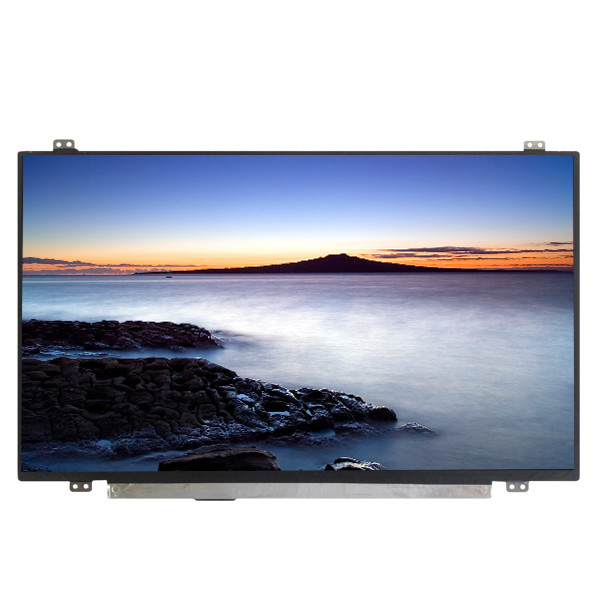

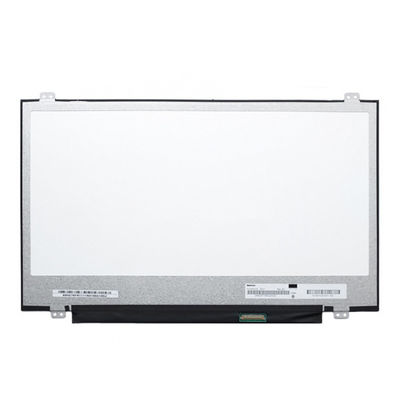

14.0 Inch N140HCE-EN1 IPS Display Panel FHD LED LCD Screen 1920x1080
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140HCE-EN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N140HCE-EN1 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 308.851(W)×173.729(H) Mm |
| Outline Dim.: | 315.41(H)×202.54(V) ×2.4(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) (TM) | Operating Mode: | AAS, Normally Black, Transmissive |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | IPS Display Panel FHD LCD Screen,N140HCE-EN1 LCD Laptop Screen,1920x1080 LCD Laptop Screen |
||
Product Description
14.0 inch N140HCE-EN1 FHD FHD LED LCD Screen 1920x1080 IPS Display Panel
N140HCE-EN1 Product details :
| Innolux LCD SCREEN N140HCE-EN1 | |
|---|---|
| Manufacturer | Innolux |
| Model Name | N140HCE-EN1 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 308.851 × 173.729 (H×V) |
| Outline(mm) | 315.41 × 202.54 × 2.4 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K 100% sRGB |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 14.0 inch N140HCE-EN1 FHD FHD LED LCD Screen 1920x1080 IPS Display Panel | |
N140HCE-EN1 Attention:
We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.
Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.
Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.
N140HCE-EN1 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
N140HCE-EN1 Shippment & Packing:
N140HCE-EN1 About the shipping:
The recipient must be full name or company name.We use Aliexpresss standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers. After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
N140HCE-EN1 FAQ:
Q: How long will I receive my goods N140HCE-EN1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of N140HCE-EN1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of N140HCE-EN1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
