HannStar LCD Screen Display Panel HSD103JPW2-H10 10.3 Inch 1920*720 Replacement
Product Details:
Place of Origin: | China |
Brand Name: | HannStar |
Model Number: | HSD103JPW2-H10 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | HSD103JPW2-H10 | Diagonal Size: | 10.3" |
---|---|---|---|
Resolution: | 1920(RGB)×720 200PPI | Active Area: | 243.648(W)×91.368(H) Mm |
Bezel Opening: | 246.7(W)×94.4(H) Mm | Outline Dim.: | 258.8(H)×110(V) ×17(D) Mm |
Luminance: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
Weight: | TBD | Designed For: | Outdoor High Brightness / Automotive Display |
High Light: | HannStar LCD Screen Display Panel,HSD103JPW2-H10 LCD Screen Display Panel,10.3 inch LCD Screen Display Panel |
Product Description

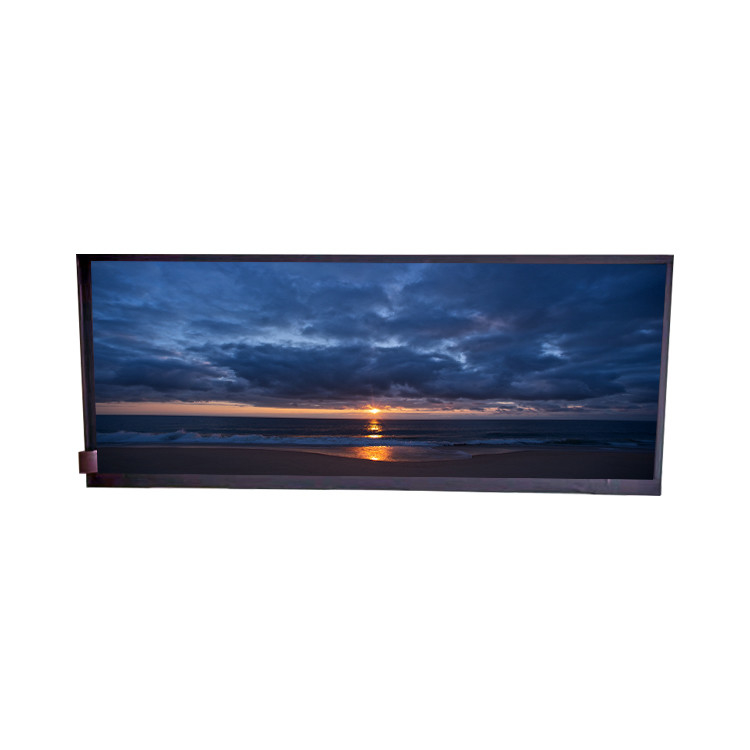

New HannStar HSD103JPW2-H10 10.3 inch 1920*720 LCD Screen Display Panel Replacement
HSD103JPW2-H10 Product details :
HannStar LCD Screen HSD103JPW2-H10 | |
---|---|
Brand | HannStar |
Model P/N | HSD103JPW2-H10 |
Diagonal Size | 10.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×720 200PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 243.648(W)×91.368(H) mm |
Bezel Opening | 246.7(W)×94.4(H) mm |
Outline Dim. | 258.8(H)×110(V) ×17(D) mm |
Treatment | Antiglare, Hard coating (3H), Reflection 5.0% (Typ.) |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 1500:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Max.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | IPS Pro, Normally Black, Transmissive |
Support Color | 16.7M 70% NTSC |
Light Source | WLED [4 strings] , 20K hours , W/O Driver |
Weight | TBD |
Designed For | Outdoor High Brightness / Automotive Display |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (2 ch, 8-bit) , 60 pins FPC |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
New HannStar HSD103JPW2-H10 10.3 inch 1920*720 LCD Screen Display Panel Replacement |
