Edp 14.0 Inch Lcd Screen Display Slim Led Innolux N140bge-Eb3
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | N140BGE-EB3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N140BGE-EB3 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Outline (mm): | 320.4×205.1×3 (H×V×D) | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | Lcd Screen Display Slim Led Innolux,Edp 14.0Inch Lcd Screen Display Led,N140bge-Eb3 Lcd Screen Display Led |
||
Product Description

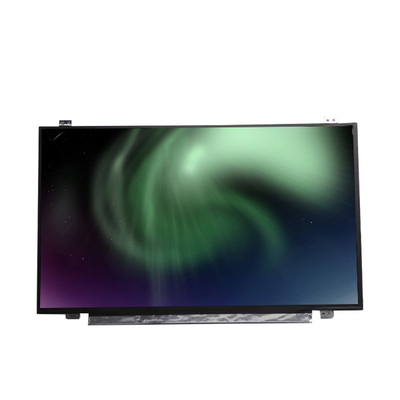

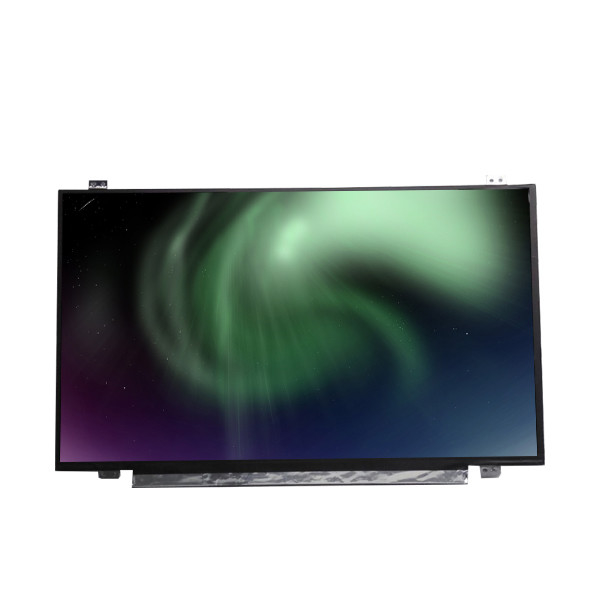

New and original LCD Screen DISPLAY SLIM LED edp 14.0 inch Innolux N140BGE-EB3
N140BGE-EB3 Product details :
| Innolux LCD SCREEN N140BGE-EB3 | |
|---|---|
| Manufacturer | Innolux |
| Model Name | N140BGE-EB3 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| New and original LCD Screen DISPLAY SLIM LED edp 14.0 inch Innolux N140BGE-EB3 | |
N140BGE-EB3 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
N140BGE-EB3 Shippment & Packing:
N140BGE-EB3 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
N140BGE-EB3 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
N140BGE-EB3 FAQ:
Q: How long will I receive my goods N140BGE-EB3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of N140BGE-EB3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of N140BGE-EB3?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
