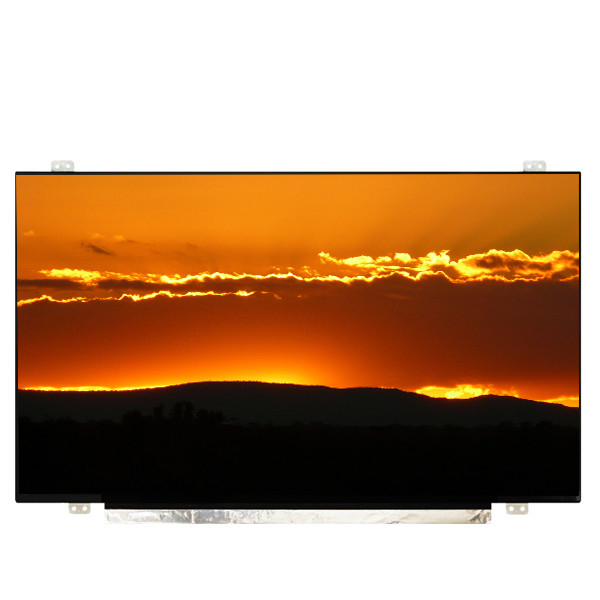

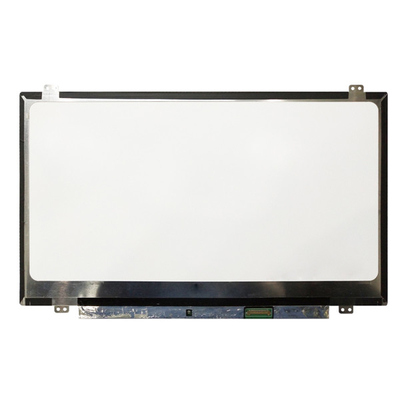

14.0 Inch Laptop LCD Display Panel N140BGE-EA3 FRU For Innolux
Product Details:
Place of Origin: | China |
Brand Name: | Innolux |
Model Number: | N140BGE-EA3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | N140BGE-EA3 | Diagonal Size: | 14.0" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
Outline Size: | 320.4(W)×205.1(H) ×3(D) Mm | Surface: | Antiglare, Hard Coating (3H) |
Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Display Colors: | 262K 45% NTSC |
Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
High Light: | Laptop LCD Display Panel N140BGE-EA3,Laptop LCD Display Panel For Innolux,Laptop LCD Display Panel 14.0Inch |
Product Description
14.0 inch Laptop LCD Display Panel N140BGE-EA3 FRU for Innolux
N140BGE-EA3 Product details :
Innolux LCD SCREEN N140BGE-EA3 | |
---|---|
Manufacturer | Innolux |
Model Name | N140BGE-EA3 |
Screen Size | 14.0 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 309.399 × 173.952 (H×V) |
Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
Response | 3/7 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 45% NTSC |
Backlight | WLED , 15K hours , With LED Driver |
Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |

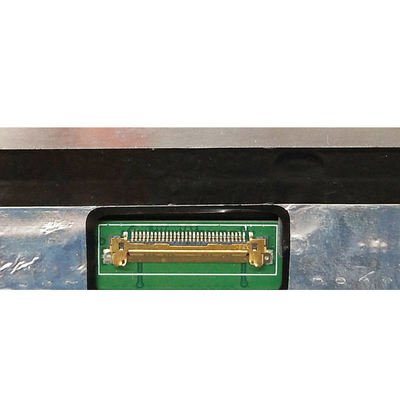

Signal Type | eDP (1 Lanes) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
14.0 inch Laptop LCD Display Panel N140BGE-EA3 FRU for Innolux |
N140BGE-EA3 Attention:
We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.
Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.
Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.
N140BGE-EA3 Shippment & Packing:
N140BGE-EA3 Shipping:
We Ship to Worldwide via DHL, UPS, FEDEX, TNT, CPAM, we also have our own cargo to ship the goods worldwise with cheaper price.
Items are shipped via DHL, UPS, FEDEX, TNT, reach most of the countryes whith in 5-15 business days.
Items are shipped from China using Airmail, reach most of the countries within 10 to 40 business days.
N140BGE-EA3 Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
N140BGE-EA3 FAQ:
Q: How long will I receive my goods N140BGE-EA3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.]
Q: Can you give me a discount if I need a large quantity of N140BGE-EA3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of N140BGE-EA3 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of N140BGE-EA3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
