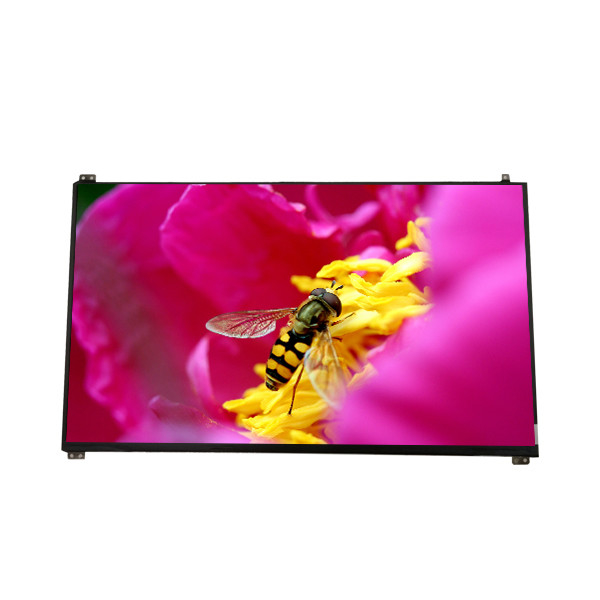

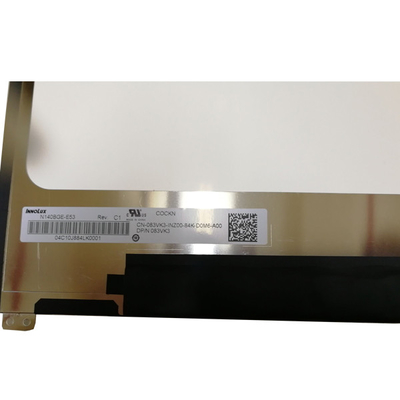

N140BGE-E53 Innolux LCD Screen Matte LCD Display 14.0 Inch 30 Pins EDP 1366*768
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140BGE-E53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | N140BGE-E53 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Bezel Opening: | 312.7(W)×177.25(H) Mm | Outline Dim.: | 320.4(H)×199.2(V) ×5.25(D) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Form Style: | Slim (PCBA Bent, T≤3.0mm) | Designed For: | Laptop |
| High Light: | Innolux LCD Screen Matte Display,N140BGE-E53 LCD Screen Display,30 pins LCD Screen Matte Display |
||
Product Description
N140BGE-E53 Innolux LCD Screen 14.0 inch 30 pins EDP 1366*768 Matte LCD Display
N140BGE-E53 Product details :
| Innolux LCD SCREEN N140BGE-E53 | |
|---|---|
| Manufacturer | Innolux |
| Model Name | N140BGE-E53 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | 320.4 × 199.2 × 5.25 (H×V×D) |
| Bezel Area(mm) | 312.7 × 177.25 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N140BGE-E53 Innolux LCD Screen 14.0 inch 30 pins EDP 1366*768 Matte LCD Display | |
