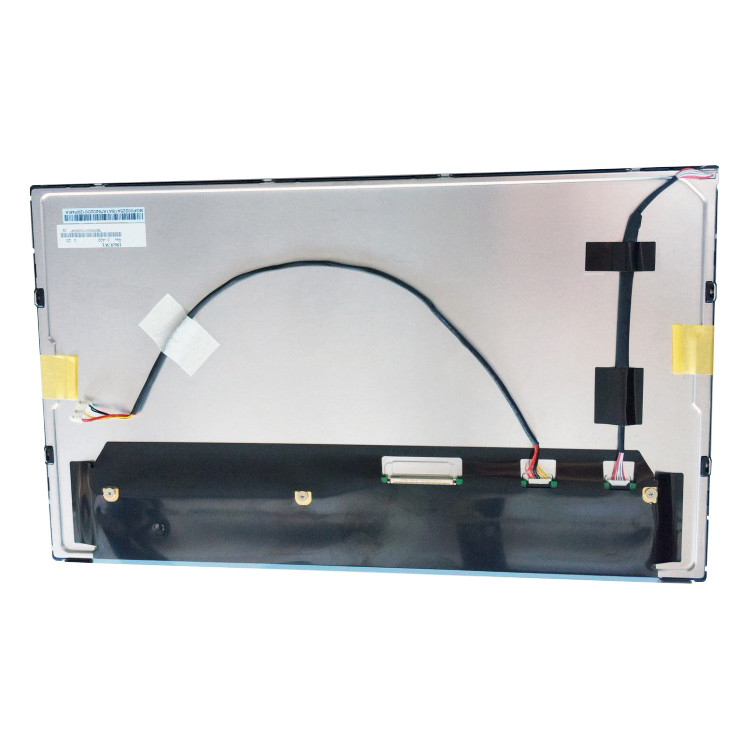

15.6 Inch LCD Screen Display Panel HSD156JUW1-A00 1920RGB*1080
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD156JUW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD156JUW1-A00 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Bezel Opening: | 346(W)×195.4(H) Mm | Outline Dim.: | 363.8(W)×215.9(H)×12(D) Mm |
| Luminance: | 850 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Weight: | TBD | Designed For: | Industrial / Outdoor High Brightness / Automotive Display |
| Highlight: | 15.6inch LCD screen Display panel,HSD156JUW1-A00 LCD screen Display panel,1920RGB*1080 LCD screen Display panel |
||
Product Description
15.6 inch LCD panel HSD156JUW1-A00 1920(RGB)*1080 LCD screen Display
HSD156JUW1-A00 Product details :
| HannStar LCD Screen HSD156JUW1-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD156JUW1-A00 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 346(W)×195.4(H) mm |
| Outline Dim. | 363.8(W)×215.9(H)×12(D) mm |
| Treatment | Antiglare |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 18/17 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [8S6P] , 50K hours , With LED Driver |
| Weight | TBD |
| Designed For | Industrial / Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 15.6 inch LCD panel HSD156JUW1-A00 1920(RGB)*1080 LCD screen Display | |
HSD156JUW1-A00 Payment:
Escrow, TT, Western Union or paypal are available to you.
ALI will continue to update more payment methods.
When submitting your order, you can choose the payment method that suits you.
HSD156JUW1-A00 Shippment & Packing:
HSD156JUW1-A00 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
HSD156JUW1-A00 Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
HSD156JUW1-A00 FAQ:
Q: How to make payment of HSD156JUW1-A00 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of HSD156JUW1-A00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of HSD156JUW1-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
