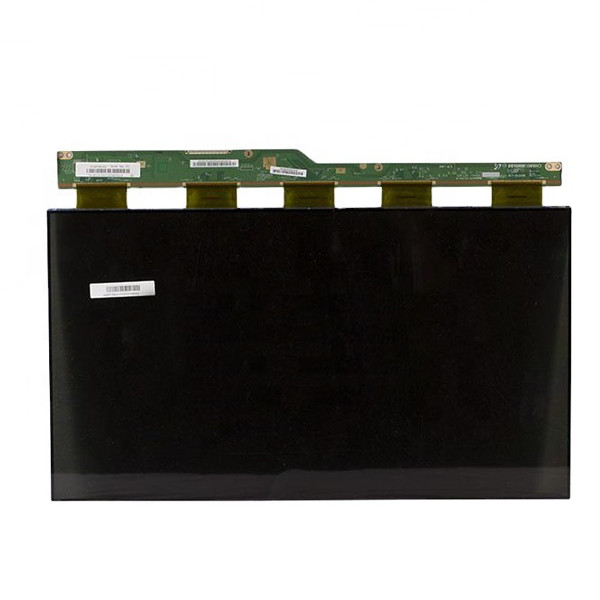

M195FGE-P02 Lcd Screen Display 19.5 Inch 1600*900 For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M195FGE-P02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M195FGE-P02 | Diagonal Size: | 19.5" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 94PPI | Active Area: | 432(W)×239.76(H) Mm |
| Outline Dim.: | 437(H)×246.67(V) ×1.43(D) Mm | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Response Time: | 1.5/3.5 (Typ.)(Tr/Td) |
| Weight: | 345/365g (Typ./Max.) | Designed For: | Desktop Monitor |
| High Light: | M195FGE-P02 Lcd Screen Display,19.5Inch Lcd Screen Display,Antiglare Lcd Screen Panel Display |
||
Product Description
19.5 inch 1600*900 M195FGE-P02 lcd Screen display for Desktop Monitor
M195FGE-P02 Product details :
| Innolux LCD SCREEN M195FGE-P02 | |
|---|---|
| Manufacturer | Innolux |
| Model Name | M195FGE-P02 |
| Screen Size | 19.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1600(RGB)×900 (HD+) 94PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 432 × 239.76 (H×V) |
| Outline(mm) | 437 × 246.67 × 1.43 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.9% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72% NTSC |
| Backlight | No B/L |
| Mass | 345/365g (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 5 source chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 19.5 inch 1600*900 M195FGE-P02 lcd Screen display for Desktop Monitor | |
M195FGE-P02 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
M195FGE-P02 Shippment & Packing:
M195FGE-P02 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
M195FGE-P02 The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
*If you need to track the logistics details, please check the following link:
DHL, UPS, FEDEX, EMS, etc.: www.17track.net
Yanwen Package: https://track.yw56.com.cn/en-US
M195FGE-P02 FAQ:
Q: If I place order now,when will you ship the goods of M195FGE-P02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of M195FGE-P02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods M195FGE-P02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M195FGE-P02 ?
A: We accept T/T , Paypal , western union .
