IVO Original LCD Panel Display Screen M150GNN2 R3 15.0 Inch 1024*768
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M150GNN2 R3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M150GNN2 R3 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline(mm): | 326.5 × 253.5 × 12.5 (H×V×D) |
| Treatment: | Antiglare, Hard Coating (3H) | Backlight: | 10S3P WLED , 30K Hours , With LED Driver |
| Mass: | 1.20Kgs (Max.) | Used For: | Industrial |
| Highlight: | IVO original LCD Panel Display Screen,M150GNN2 LCD Panel Display Screen,15.0 inch LCD Panel Display Screen |
||
Product Description

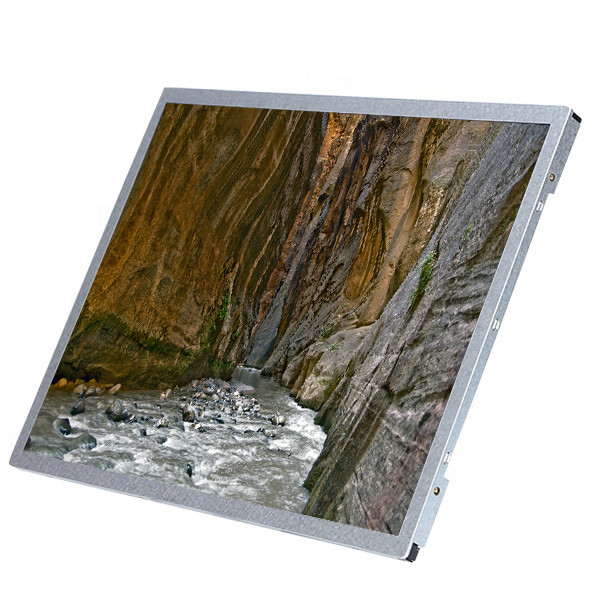

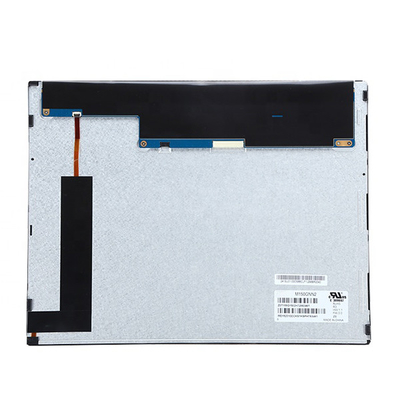

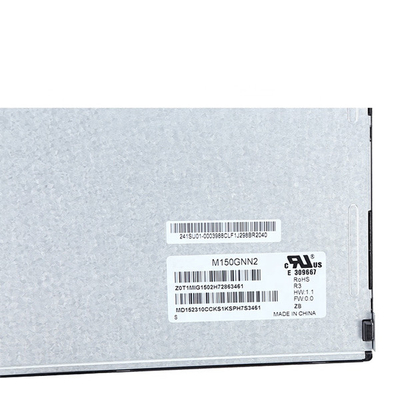

IVO original M150GNN2 R3 15.0 inch 1024*768 LCD Panel Display Screen
M150GNN2 R3 Product details :
| IVO LCD SCREEN M150GNN2 R3 | |
|---|---|
| Manufacturer | IVO |
| Model Name | M150GNN2 R3 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 16(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 10S3P WLED , 30K hours , With LED Driver |
| Mass | 1.20Kgs (Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
| IVO original M150GNN2 R3 15.0 inch 1024*768 LCD Panel Display Screen | |
M150GNN2 R3 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
M150GNN2 R3 Shippment & Packing:
M150GNN2 R3 About transportation:
*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.
*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region.
Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)
M150GNN2 R3 Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
M150GNN2 R3 FAQ:
Q: How can I trace my order of M150GNN2 R3 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of M150GNN2 R3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of M150GNN2 R3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
