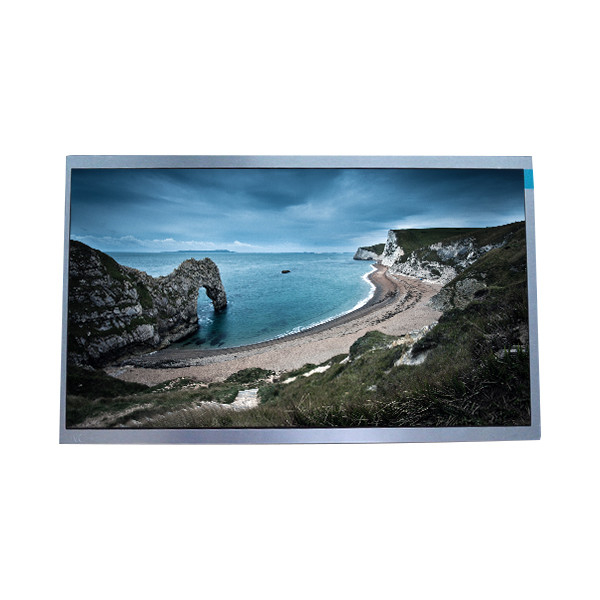

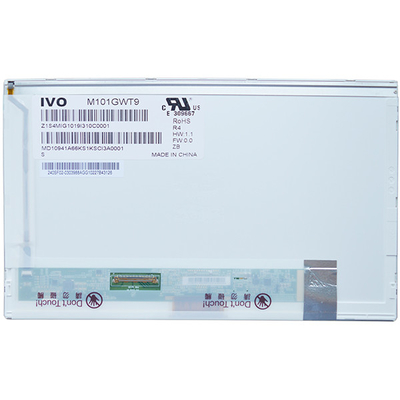

10.1 Inch Tft Lcd Screen Module Display Panel 1024*600 M101GWT9 R4
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101GWT9 R4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M101GWT9 R4 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 226.47(W)×128.48(H) Mm | Outline (mm): | 235×143×5.2 (H×V×D) |
| Luminance: | 350 Cd/m² (Typ.) | Response: | 16 (Typ.)(Tr+Td) Ms |
| Mass: | 220g (Max.) | Used For: | Industrial |
| High Light: | Tft Lcd Screen Module Panel Display,M101GWT9 R4 Lcd Screen Panel Display,10.1Inch Lcd Screen Panel Display |
||
Product Description
10.1 inch 1024*600 M101GWT9 R4 tft lcd screen module lcd display lcd panel
M101GWT9 R4 Product details :
| IVO LCD SCREEN M101GWT9 R4 | |
|---|---|
| manufacturer | IVO |
| Model Name | M101GWT9 R4 |
| screen size | 10.1 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 222.72(W)×125.28(H) mm |
| physical dimension | 235(W)×143(H) ×5.2(D) mm |
| Visual size | 226.47(W)×128.48(H) mm |
| surface treatment | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 70/70/70/70 (Typ.)(CR≥10) |
| Responding time | 16 (Typ.)(Tr+Td) |
| Number of color | 262K/16.7M 45% NTSC |
| Backlight type | 8S4P WLED , 30K hours , With LED Driver |
| Panel weight | 220g (Max.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 10.1 inch 1024*600 M101GWT9 R4 tft lcd screen module lcd display lcd panel | |
