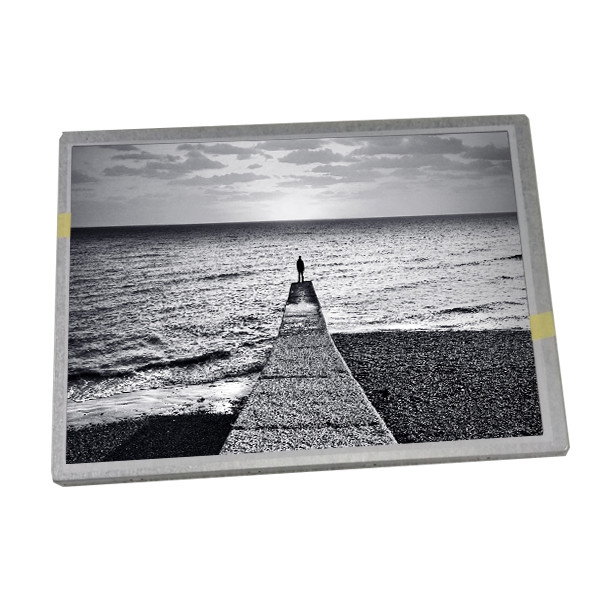

IVO TFT LCD Screen Module 10.1 Inch 1024*600 M101GWT9 R3
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101GWT9 R3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M101GWT9 R3 | Diagonal Size: | 10.1 |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 225.72(W)×128.28(H) Mm | Outline Dim.: | 244(W)×143(H)×12.9(D) Mm |
| Luminance: | 640 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Weight: | 400/440g (Typ./Max.) | Designed For: | Automotive Display |
| Highlight: | IVO TFT LCD Screen Module,M101GWT9 R3 TFT LCD Screen Module,1024*600 TFT LCD Screen Module |
||
Product Description
New IVO 10.1 inch 1024*600 TFT LCD Screen Module M101GWT9 R3
M101GWT9 R3 Product details :
| IVO LCD SCREEN M101GWT9 R3 | |
|---|---|
| Manufacturer | IVO |
| Model Name | M101GWT9 R3 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 244 × 143 × 12.9 (H×V×D) |
| Bezel Area(mm) | 225.72 × 128.28 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 640 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 7S2P WLED , 50K hours , With LED Driver |
| Mass | 400/440g (Typ./Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| New IVO 10.1 inch 1024*600 TFT LCD Screen Module M101GWT9 R3 | |
M101GWT9 R3 WARNING:
* Make sure your original one is same as ours
* Installation guide NOT included, Please ask Skilled person for operation.
M101GWT9 R3 Shippment & Packing:
M101GWT9 R3 Packing:
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
M101GWT9 R3 Shipping:
1,We will send out your goods within 3 working days after we get your order .
2,Free Shipping via China Post Registered Air Mail or ePacket.You can choose any other shipping method on ALI too.
3, Please make sure your shipping information are correct before order .If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
M101GWT9 R3 FAQ:
Q: How long will I receive my goods M101GWT9 R3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of M101GWT9 R3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: How to make payment of M101GWT9 R3 ?
A: We accept T/T , Paypal , western union .
