BOE Slim 30pins Edp Laptop Lcd Led Display Screen NV140FHM-N63 14.0 Inch For Asus Ux433
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N63 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV140FHM-N63 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.312(W)×173.988(H) Mm |
| Outline Dim.: | 315.01(H)×186.2(V)×4.2(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Response Time: | 30 (Typ.)(Tr+Td) | Operating Mode: | ADS, Normally Black, Transmissive |
| Form Style: | Slim (PCBA Bent, T≤3.0mm) | Designed For: | Laptop |
| High Light: | Edp Laptop Lcd Led Display Screen,NV140FHM-N63 Lcd Led Display Screen,30pins Lcd Led Display Screen |
||
Product Description

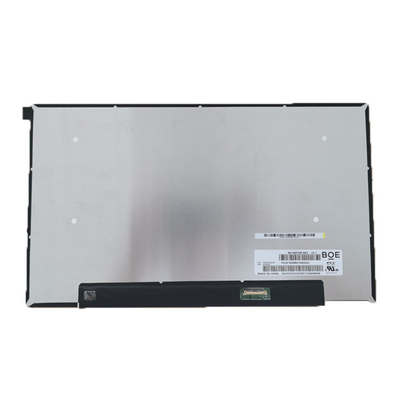

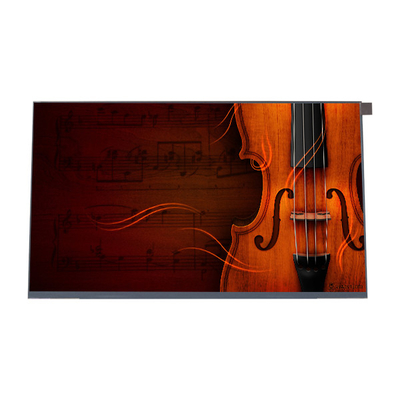

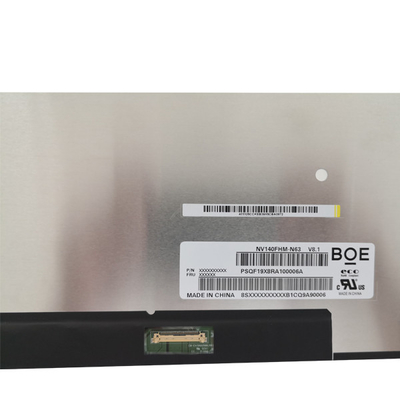

Brand new BOE Slim 30pins Edp Laptop Lcd Led Display Screen NV140FHM-N63 14.0 inch laptop lcd screen For Asus Ux433
NV140FHM-N63 Product details :
| BOE LCD SCREEN NV140FHM-N63 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV140FHM-N63 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 315.01 × 203.83 × 4.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Brand new BOE Slim 30pins Edp Laptop Lcd Led Display Screen NV140FHM-N63 14.0 inch laptop lcd screen For Asus Ux433 | |
NV140FHM-N63 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
NV140FHM-N63 Hello friends, before you order:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
NV140FHM-N63 Shippment & Packing:
NV140FHM-N63 ESTIMATED DELIVERY TIME:
- We Would Ship Out your order within 24 hours
- Economy: 15-50 days
- Standard: 10-35 days
- Expedited: 4-7 days
NV140FHM-N63 FAQ:
Q: If I place order now,when will you ship the goods of NV140FHM-N63 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NV140FHM-N63 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NV140FHM-N63 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods NV140FHM-N63 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
