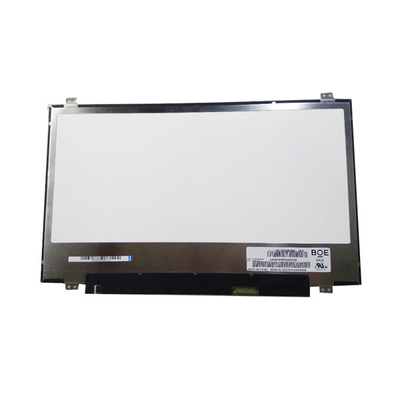

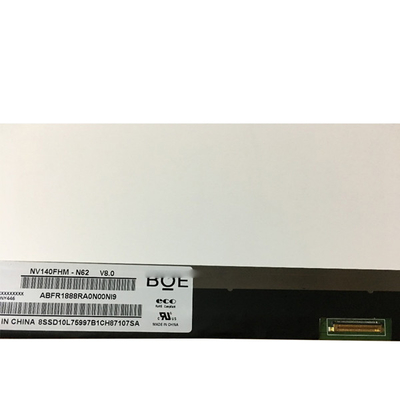

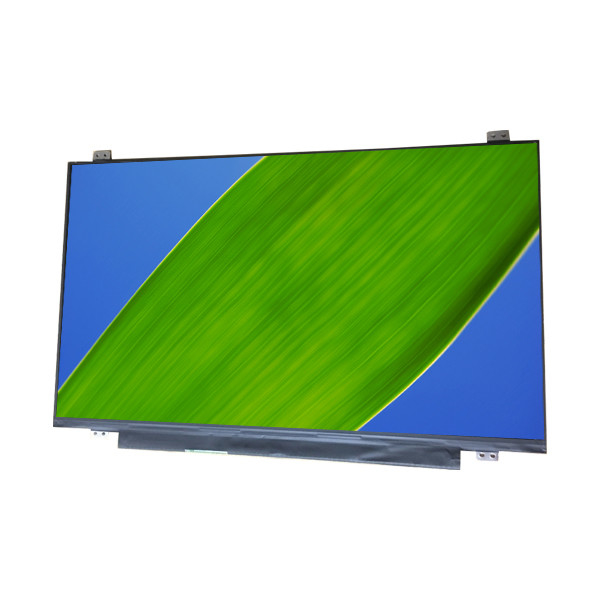

14.0 Inch NV140FHM-N62 LCD Laptop Screen Monitor For ASUS VivoBook Flip 14 TP410UA TP410U
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N62 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV140FHM-N62 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.312(W)×173.988(H) Mm |
| Outline Dim.: | 315.01(W)×203.83(H) ×2.4(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Response Time: | 30 (Typ.)(Tr+Td) |
| Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
| High Light: | VivoBook Flip LCD Laptop Screen Monitor,NV140FHM-N62 LCD Laptop Screen Monitor,TP410UA LCD Laptop Screen Monitor |
||
Product Description
14.0 Inch LCD Screen Display Modules FHD 30PIN IPS NV140FHM-N61 For Thinkpad x1 Carbon 5TH Gen
NV140FHM-N62 Product details :
| BOE LCD SCREEN NV140FHM-N62 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV140FHM-N62 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 315.01 × 203.83 × 2.4 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 14.0 inch NV140FHM-N62 Notebook LCD Screen Monitor Assembly For ASUS VivoBook flip 14 TP410UA TP410U Laptop Screen | |
NV140FHM-N62 Product line:
Laptop lcd and led screen:from 4.5 inch to 18.4 inch
1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" ,15.0",15.4",15.6",16. 0",17.0",17.3",18.4"and so on.
2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++
3. Backlight:LED,1CCFL,2CCFL
NV140FHM-N62 Shippment & Packing:
NV140FHM-N62 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
NV140FHM-N62 After service:
We can accept a 5-days return without reasons, and promise a warranty of 90 days for this item , and the shipping cost of returning should be afforded by the buyer.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
NV140FHM-N62 FAQ:
Q: How can I trace my order of NV140FHM-N62 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of NV140FHM-N62 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of NV140FHM-N62 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NV140FHM-N62 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90 days warranty .
